Upright LED fluorescence module MF-LED(multi-channels)

MF-LED multi-channels series LED fluorescence attachment features with built-in color LEDs as light source. Providing friendly fluorescence upgrade solution for basic fluorescence microscope users. By the modular illumination you can easily upgrade a traditional infinity upright biological microscope to fluorescence functional. Digital screen shows and remember each channel LED light intensity from 0~100%. It is compatible with laboratory microscopes Olympus, Nikon, Leica, Zeiss and others.

Categories: Epi-LED Fluorescence module, Fluorescence modules & LED illuminators, Upright multi-channel fluorescence module MF-LED

Description

The upright digital fluorescence module can match the upright biological microscopes of infinity optical systems of major brands, so that ordinary microscopes can realize fluorescence function without changing the original optical path of the microscope, and can easily realize fluorescence observation function for ordinary microscopes. The three-color three-channel design can meet the observation needs of three-color fluorescence, and can be equipped with relevant bands including V/B/G/Y/R, and equipped with a digital display screen design to meet the requirements of quantitative experiments, making the brightness adjustment more controllable. In addition, the light field of view has been expanded, and it is more compatible with microscopes than before.

Feature

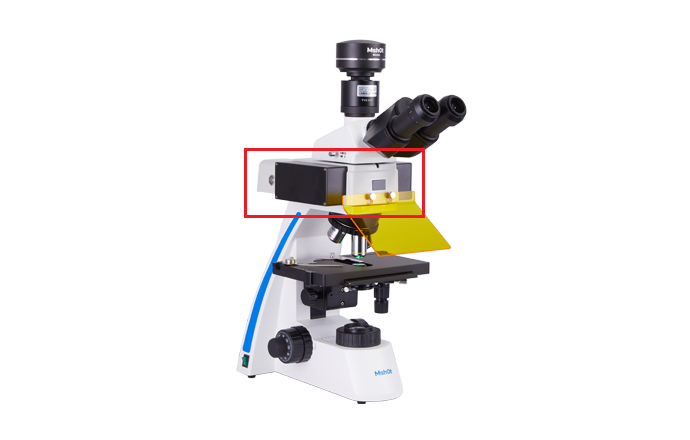

MF-LED fluorescence module_multichannels features

■ Compact design contains light source and filters in one unit.
■ Instant on-off, no need waiting of pre-heating or cooling.
■ Light source synchronous switching between different filter groups via slider / lever.
■ No requirement of external or added power supply.
■ LED has a long service life and low labor maintenance cost.
■ The digital display shows the brightness of different channels, enabling quantitative analysis.
■ Brightness memory function enables seamless switching between different bands.
■ The original transmitted light of the microscope is retained.
■ CE,FCC,EMC,EU and ISO certified.

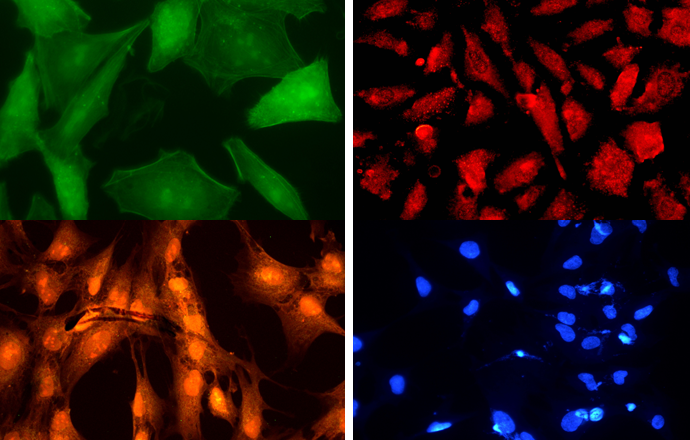

MF-LED fluorescence module_multichannels applications

■ Botany
■ Clinical diagnose
■ Immnuofluorescence
■ Tuberculosis sputum slide
■ Skin and foot fungus
■ Food microorganism
■ Respiratory disease
■ Sperm analysis
■ Fluorochrome stained slide
■ Fluorescence quantify

Specifications

Models
Item No.	LED lamps	Filter Groups	Compatible microscopes
MF-BY-LED	Blue and Yellow	Blue and Yellow	Olympus CX/BX Nikon Eclips/E100/E200/Ci-L Leica DM500/DM750/DM1000 Zeiss PrimoStar /A1 Sunny EX30 Motic BA310/Panthera C
MF-BG-LED	Blue and Green	Blue and Green
MF-BU-LED	Blue and UV	Blue and UV
MF-BYU-LED	Blue, yellow and UV	Blue, Yellow and UV
MF-BGU-LED	Blue, green and UV	Blue, green and UV

* Four channels model MF-UBGR / MF-UBYR can be customized

Standard specification
Model	Filter	Filter wavelength			Recommend Application
Model	Filter	Excitation	Dichroic mirror	Emission	Recommend Application
B	Blue	475/30nm	>505nm	530/40nm	GFP / FITC /EGFP/ Malaria diagnostic/ Alexa 488 / Cy2@ / Fluo-4 / FluorX@ / Fluoro-Jade
Y	Yellow	560/40nm	>600nm	610nmLP	mCherry / Texas Red / AlexaFluor 594
U	UV	355/50nm	>410nm	420nmLP	DAPI / Hoechst 33342&33258 / AMCA/AMCA-X / Alexa 350
G	Green	530/40nm	>570nm	575nmLP	PI / EB / EH /TRITC
Light source		Blue &UV: 3W LED cold lamp for each filter group Green/Yellow: 5W LED cold lamp for each filter group
Observation		Fluorescence
Observation		Bright field & phase contrast by microscope original lighting
Digital screen		Show light intensity 0~100% and remember each color light source brightness
Operation		Lever : B, G, UV/O (bright field)
Power control		Rota-table knob, continuously adjustable brightness
Input power		12V 2A
Shell		High rigid precision-cast aluminium with coating
Light baffle		Orange color plastic light baffle

Optional LED lamp and Filters
LED	Filter type	Excitation filter	Dichroic mirror	Emission filter	Remark
Blue	Long-pass	475/30nm	>500nm	510nmLP	Chroma filters are optional
Green	Band-pass	530/40nm	>565nm	605/55nm
UV	Band-pass	375/30nm	>415nm	460/50nm
Violet	Long-pass	400/40nm	>430nm	460nmLP
Royal blue	Long-pass	420-480nm	>500nm	510nmLP
Red	Band-pass	620/50nm	>655nm	692/45nm
