Stereo microscope MZ62

MZ62 adopts high-quality optical system design to display excellent resolution and true colors. The ergonomic design and durable body components make it stable and reliable for long-term use. It is an ideal tool for high-precision observation fields such as routine biomedical testing, scientific research and industrial testing.

Categories: Microscopes, Stereo microscopes

Description

MZ62 series zoom stereo microscope has high-quality optical system design, showing excellent resolution and true color, body and parts are ergonomic and durable. It has transmitted light and reflected light with LED illumination, the reflected lighting angle can be moved by user needs. High eyepoint eyepiece with ±5° adjustable is comfortable for long time observation, head support 50%/50% light division to achieve view image on PC and eyepiece synchronise. The microscope is ideal for high-precision 3D observation of stereoscopic objects such as electronic components, plant, insect, sand and other small objects, it is widely used for routine biomedical tests, scientific research and industrial inspections.

Feature

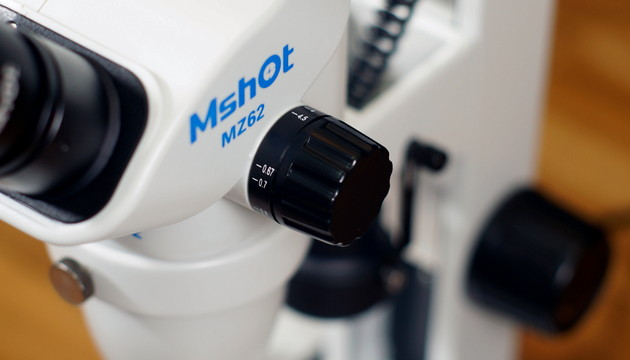

Focusing System:

The long working distance and large-travel focusing range reserve enough space for large-size samples; guide rail components: ensure accuracy and stability; the focusing handwheel is adjustable to maintain a good operating feel.

Trinocular observation head:

Ergonomically designed; can be observed simultaneously under the camera without switching back and forth; flexibly adapted to samples of different sizes.

Large field of view high eye point eyepieces:

Standard large-field eyepieces provide a flat and wide field of view to reduce eye fatigue; high eye point design allows observation without taking off glasses; adjustable diopter ensures synchronized clarity under binoculars.

Sample images:

Specifications

Parts	Specification	Standard	Optional
Eyepiece	WF10X/22mm high eye-point , large field of view, both eyepiece diopter adjusting range ±5°	•
	WF10X/22mm reticle eyepiece		•
	WF20X/12		•
Observation tube	45°inclined hinged trinocular observation tube, light path selector: 50%/50% Pupil distance adjusting range: 54-75mm Zoom range：0.67X～4.5X Zoom ratio：6.7:1 Working distance:105mm	•
Camera adapter	0.5X C-mount adapter
Camera adapter	1X C-mount adapter		•
Focus system	Focusing frame and wheel tension adjustable focus adjustment Lifting distance 50mm.	•
Base	L slope type vertical arm base, vertical arm adjustment, stroke 106mm	•
Board	φ95mm frosted glass work board	•
Lighting system	Up/down LED light source lighting	•
Objectives	2X auxiliary objective		•
	0.5X auxiliary objective		•
	0.75X auxiliary objective		•
Galss plate and white board	Frosted glass plate (double-sided frosted)		•
	Black and white board		•
	Translucent whiteboard		•
