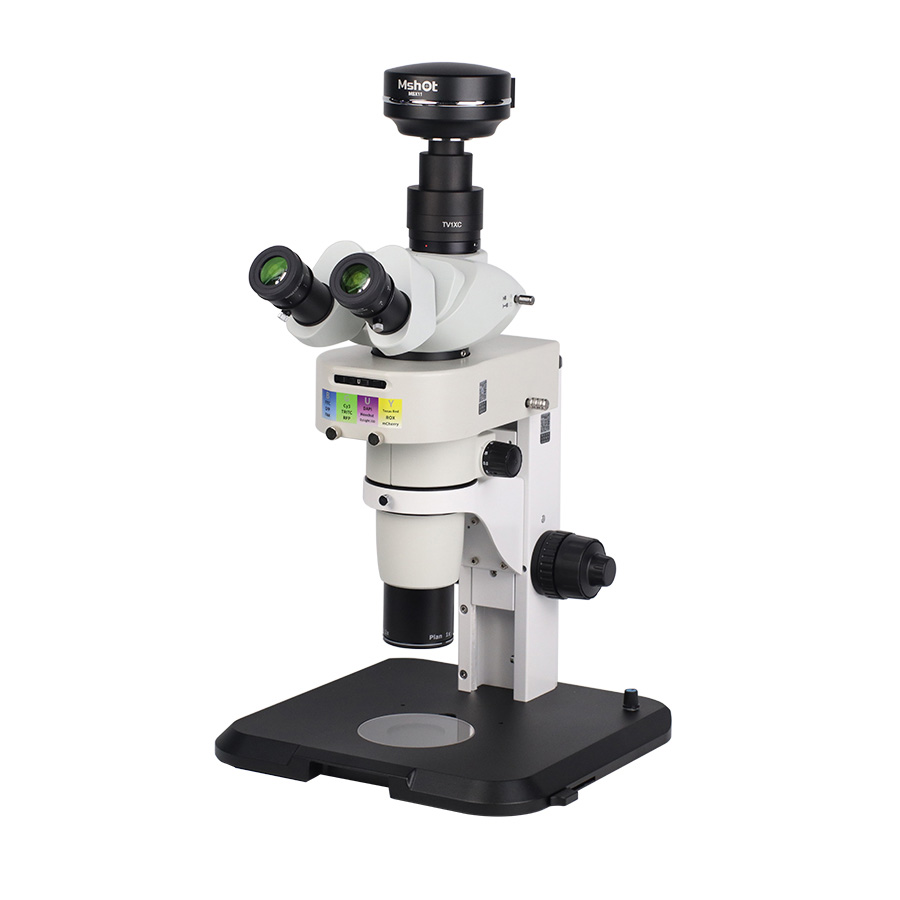

Stereo-fluorescence microscope MZX100

MZX100 adopts high-quality Galilean parallel dual-light path design, with high resolution and true colors. It has rich accessory options, a zoom ratio of 1:10, and is ergonomically designed.

Share:

Get Exclusive Offers and Updates!

    Description

    MZX100 is an infinity optical stereofluorescence microscope with a large zoom range. It adopts high-quality Galilean parallel dual-light path design, with high resolution and true colors. It has rich accessory options, a zoom ratio of 1:10, and is ergonomically designed. It is an ideal choice for conventional biomedicine, fishery, animal husbandry, agriculture and forestry, industrial testing and scientific research.

    Feature

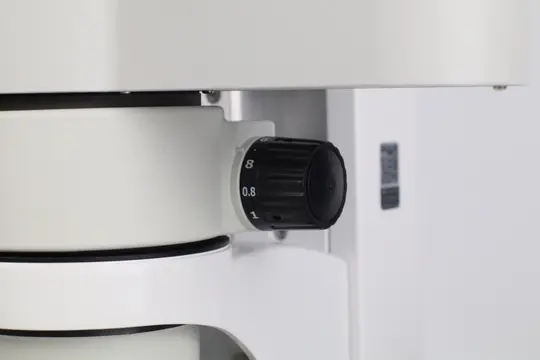

    Large zoom ratio:

    ■Zoom ratio up to 1:10, flexible and detailed observation.
    ■Infinite parallel dual optical paths, strong scalability.
    ■Optional variable-angle binocular head for more comfortable use.

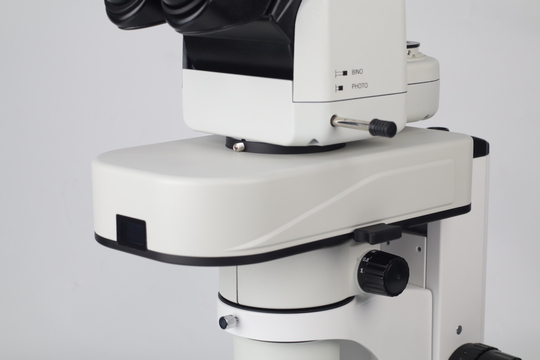

    Strong scalability:

    ■A spectroscope can be installed to connect to the microscope camera.
    ■Optional 0.5X objective lens to achieve long working distance.

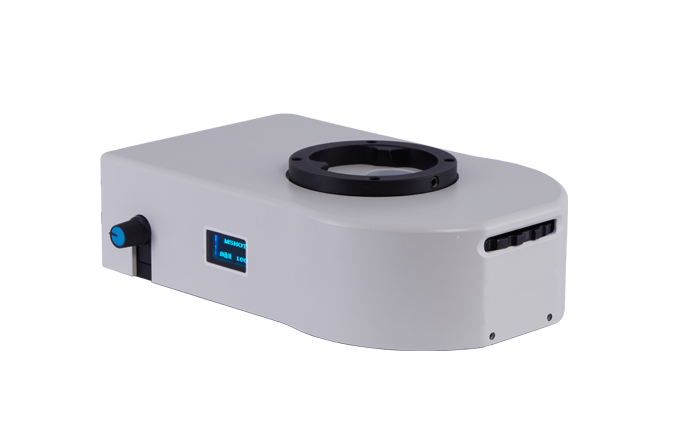

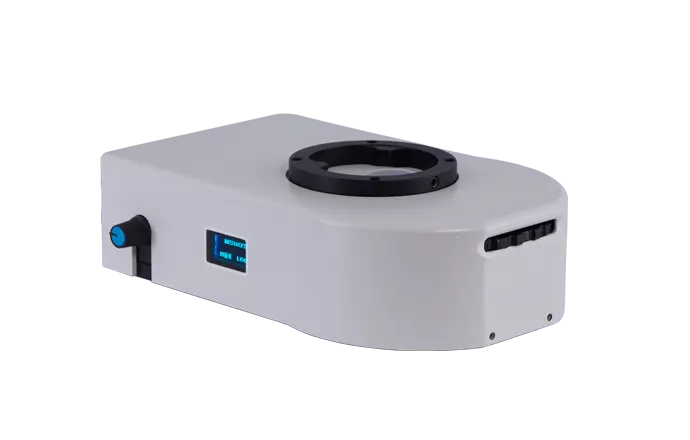

    Fluorescence illuminating of LED light:

    ■Modular designed fluorescence attachment eliminates extra lamp house and power supply, easy to use and maintain.
    ■Cold LED lighting greatly reduces the damage of heat conduction to living specimens.
    ■Excitation wavelength 380nm-420nm, 460nm-490nm,510nm-550nm, 540nm-580nm are optional.

    Sample images:

    Specifications

    Parts Specification Standard Optional
    Eyepiece High eyepoint wide field of eyepiece, diopter is adjustable WF10X
    WF15X/WF20X Reticle eyepieces (different magnifications)
    Observation tube Binocular, adjustable interpupillary distance
    Variable angle binocular head
    Olympus trinocular head
    Splitter L type, switchable beam splitte
    Fluorescent Attachment U
    B
    G
    Zoom range 0.8X-8X
    Objectives 1X Large plan objective lens
    0.5X Achromatic Objectives(Double objective lens switching optional)
    Base Column type transmission plate base, vertical arm adjustment
    Adjustable angle transmission base (optional, suitable for observing transparent samples)
    Focus bracket Focusing lens frame, adjustable focus hand whee
    Work board Clear glass work board
    Lighting system Up/down LED light source lighting
    Camera adapter 0.5X C-mount adapter
    1X C-mount adapter
