Parts |
Specification |

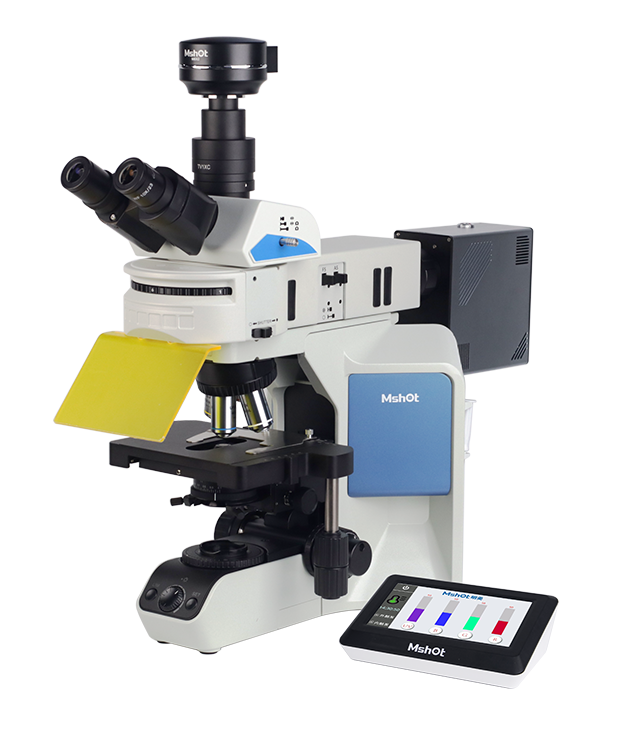

| MF43-N |
Host |
Olympus BX43 frame |
| Frame |
Eyepiece |
Wide field 10X/25，diopter is adjustable |
|
Optional eyepiece 10X/23.5 |
|
Eyepiece tube |
Hinged type trinocular observation tube, high eyepoint, 30° inclination, Pupillary distance adjustment 50-75mm |
|
Nosepiece |
Quintuple objective converter |
|

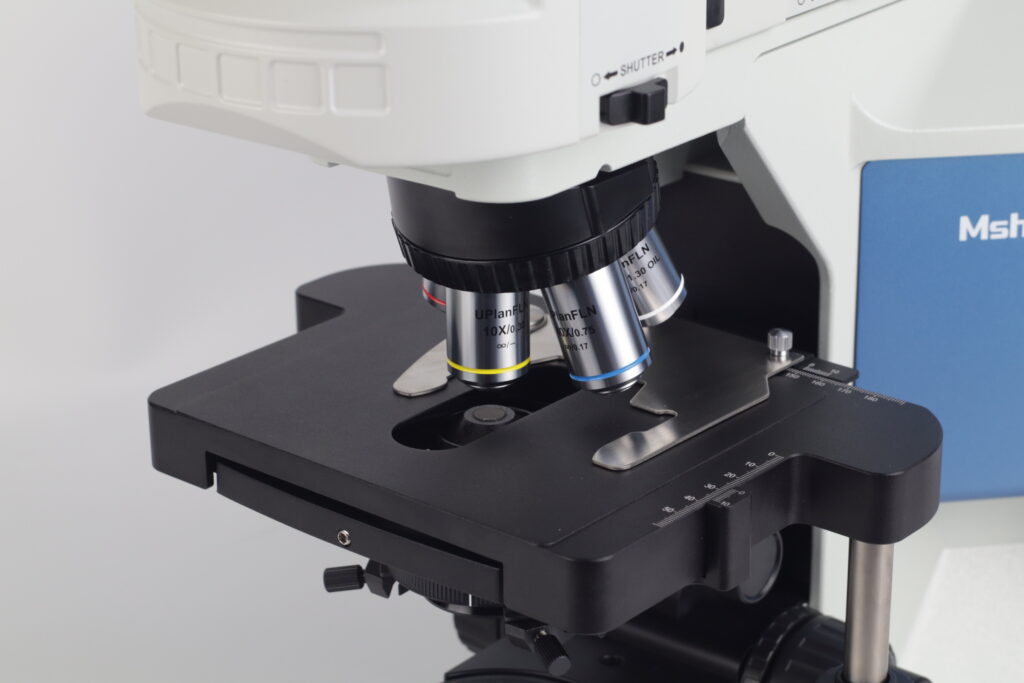

Stage |
U-SVRB-4 stage |
|
Sample holder |
U-HLDT-4 |
|
Condenser |
Abbe condenser，NA 1.1 |
|
Light barrier |
150*100mm |
|
Power line |
According to buyer’s country request |
|
Allen driver |
M3.0 hexagon socket screwdriver |
|
Dust cover |
Middle size dust cover 650*600 |
| Bright field lighting |
Warm LED illuminator |
| Objectives |
Plan semi-achromat fluorite objective M-UPLFLN 4X/0.13 ；WD：17.15mm |
| Plan semi-achromat fluorite objective M-UPLFLN 10X/0.30；WD：7.68mm |
| Plan semi-achromat fluorite objective M-UPLFLN 40X/0.75； WD：0.78mm |
| Plan semi-achromat fluorite objective M-UPLFLN 100X/1.30；WD：0.15mm |
| Epi-illuminating fluorescence system |

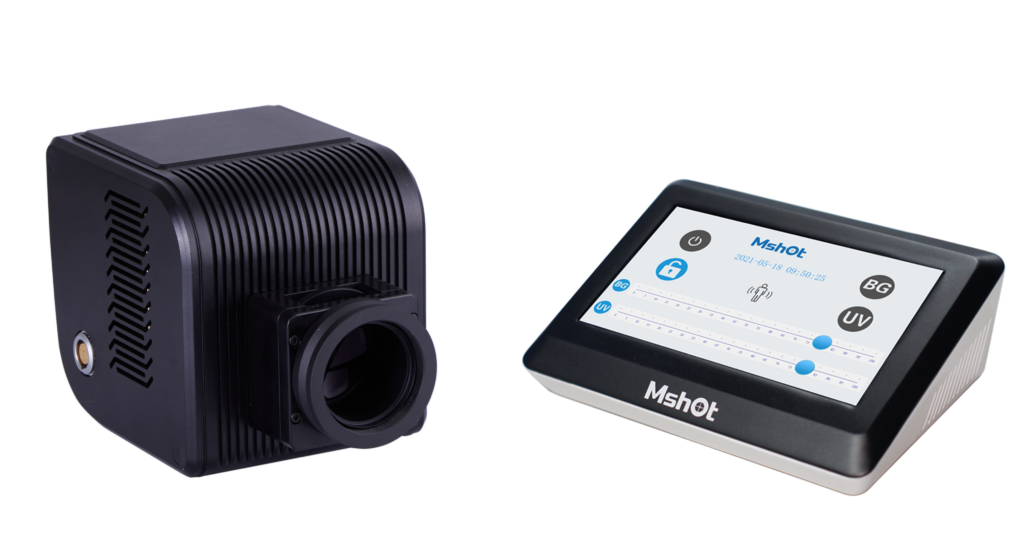

Broad-spectrum LED light source |
| Light box digital screen control box |
| Light source connector |

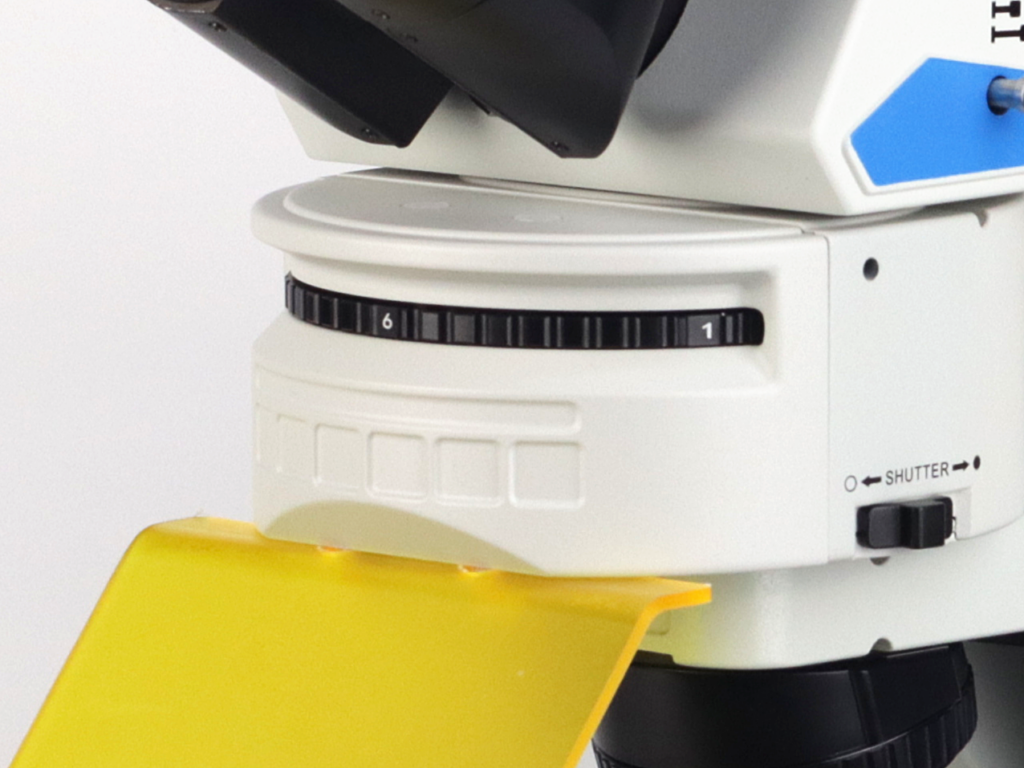

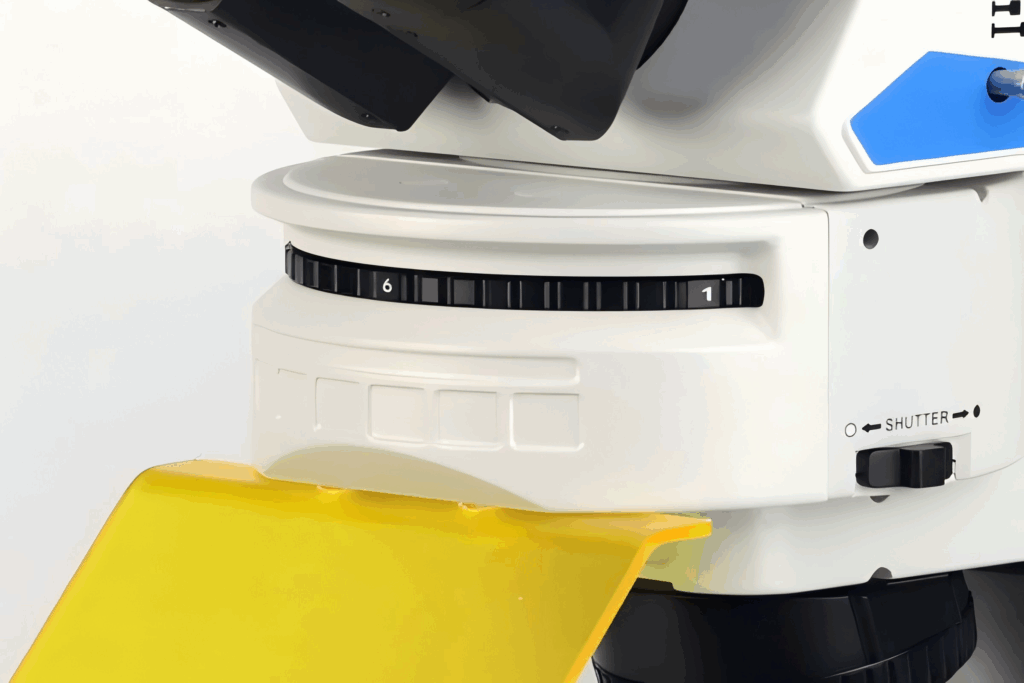

| Epi-illuminating fluorescence illuminator FL-43（6 position fluorescence wheel） |
| UV bandpass（FB-U-M） |
EX：375/30nm；DM：415nm；EM：460/50nm |
| Blue bandpass（FB-B-M） |
EX：475/30nm；DM：505nm；EM：530/40nm |
|
Yellow longpass（FL-Y-M） |
EX：560/40nm；DM：600nm；EM：610nmLP |
|
|
|
|
| Optional accessories |
|
| Parts |
Specification |
|
| Objectives |
Plan semi-achromat fluorite objective M-UPLFLN 4X/0.13 ；WD：17.15mm |
|
| Plan semi-achromat fluorite objective M-UPLFLN 10X/0.30；WD：7.68mm |
|
| Plan semi-achromat fluorite objective M-UPLFLN 20X/0.50；WD：1.96mm |
|
| Plan semi-achromat fluorite objective M-UPLFLN 40X/0.75； WD：0.78mm |
|
| Plan semi-achromat fluorite objective M-UPLFLN 100X/1.30；WD：0.15mm |
|
| Plan Fluor 4X/0.13 ；WD：17.15mm |
|
| Plan Fluor 10X/0.30；WD：7.68mm |
|
| Plan Fluor 20X/0.5；WD：2mm |
|
| Plan Fluor 40X/0.75； WD：0.7mm |
|
| Plan Fluor 100X/1.28；WD：0.15mm |
|
| UPLFLN4X/0.13 Working distance：17mm（Olympus） |
|
| UPLFLN10X2/0.3 Working distance：10mm（Olympus） |
|
| UPLFLN20X/0.5 Working distance：2.1mm（Olympus） |
|
| UPLFLN40X/0.75 Working distance：0.51mm（Olympus） |
|
| UPLFLN100XO2/1.3 Working distance：0.2mm（Olympus） |
|
| PLCN10X/0.25PH Working distance：10.6mm（Olympus） |
|
| PLCN20X/0.4PH Working distance：1.2mm（Olympus） |
|
| PLCN40X/0.65PH Working distance：0.6mm（Olympus） |
|
| Phase contrast condenser |
M-PCD-CX |
|
| BX condenser dovetail |
|
| Fluorescence illuminator |
LED module |
MF-LED fluorescence attachment |
|
| BGY/BYU/BGUR filters |
|
| 4 channels LED illuminator |
MG120: 4 channels LED illuminator, excitation peak 365nm/385nm/395nm,460nm, 520nm/560nm, 625nm |
|
| Excitation cube |
Name |
Wavelength |
|
| UV long-pass（FL-U-M） |
EX：355/50nm；DM：410nm；EM：420nmLP |
|
| Blue long-pass（FL-B-M） |
EX：475/30nm；DM：505nm；EM：510nmLP |
|
| Green long-pass（FL-G-M） |
EX：530/40nm；DM：570nm；EM：575nmLP |
|
| Green band-pass（FB-G-M） |
EX：530/40nm；DM：565nm；EM：605/55nm |
|
| Red band-pass（FB-R-M） |
EX：620/50nm；DM：655nm；EM：690/50nm |
|
| BG dual channels（FB-BG-H） |
FISH filters |
|
| Camera C-mount adapter |
TV0.5XC-MO-4 |
|
| TV0.75XC-MO |
|
| TV1XC-MO |
|
