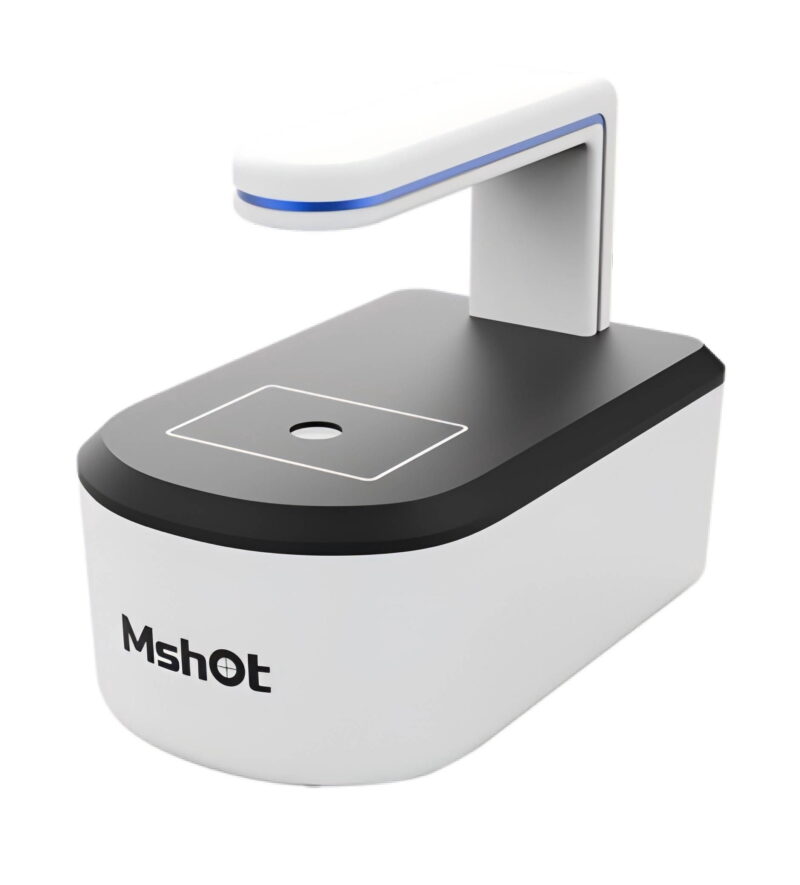

Live cell imaging system MCS11/MCS21/MCS22

Compatible with automated brightfield/fluorescence imaging in incubutor, MSHOT MCS11 & MCS21 live-cell imaging system allows for

long-term dynamic monitoring and analysis of live cells. With easy-to use software and an AI intelligent analysis system,

it can timely help you visualize and analyze sample morphology and behavior changes, and can also realize cell culture progress reminders.

Category: Live Cell lmaging System

Description

The cell imager MCS11/MCS21/MCS22 live cell imaging monitoring system greatly simplifies your workflow.

Through automated timed observation, analysis and reporting, you can remotely monitor the cell culture progress without entering the clean room or opening the incubator,

greatly improving work efficiency and avoiding the risk of interfering with growth and contaminating samples.

Intelligent functions:
Intelligent live cell imaging monitoring system greatly simplifies your workflow. Through automated timed observation, analysis and reporting, you can remotely monitor the progress of cell culture without entering the clean room or opening the incubator, thereby improving work efficiency and reducing interference and contamination risks.

Fluorescence standard version MCS21/22:
It has bright field, phase contrast and fluorescence imaging, and comes standard with two blue and green fluorescence channels, suitable for monitoring cell transfection and cell activity, etc.

The bright field basic version MCS11:
625nm red LED light source phase contrast observation can reduce cell photobleaching and is suitable for cell observation, confluence analysis, scratch healing and other scenarios.

Feature

Intelligent functions

Intelligent live cell imaging monitoring system greatly simplifies your workflow. Through automated timed observation, analysis and reporting, you can remotely monitor the progress of cell culture without entering the clean room or opening the incubator, thereby improving work efficiency and reducing interference and contamination risks.

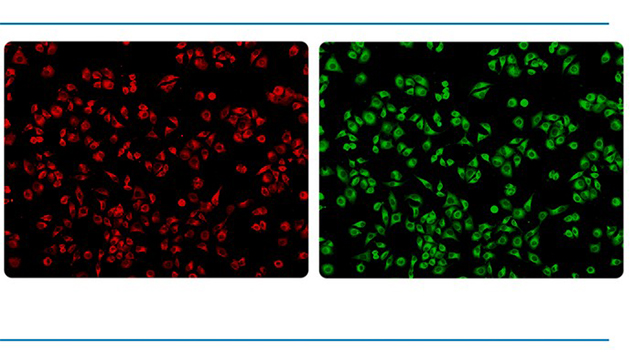

Fluorescence standard version

It has bright field, phase contrast and fluorescence imaging, and comes standard with two blue and green fluorescence channels, suitable for monitoring cell transfection and cell activity, etc.

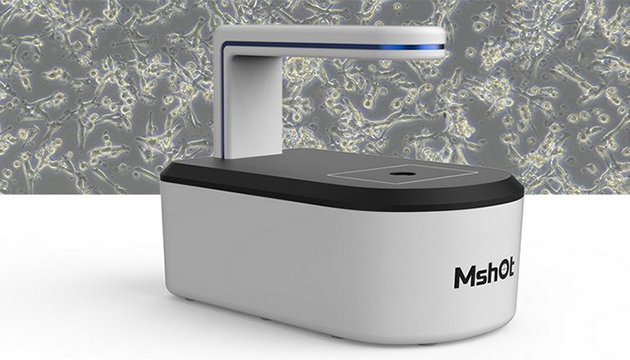

The bright field basic version MCS11

625nm red LED light source phase contrast observation can reduce cell photobleaching and is suitable for cell observation, confluence analysis, scratch healing and other scenarios.

Specification

Item	Specification
Item No.	Live cell imager MCS11/MCS21/MCS2
Bright field imaging	Transmitted phase contrast illumination, working distance 70mm
Bright field imaging	Long life low phototoxicity LED light source：625nm
Fluorescence observation	MCS11: None MCS21/MCS2: Blue (B)：475/30nm MCS21/MCS2: Green (G)：560/40nm MCS21/MCS2: Three-color fluorescence optional, band customizable
Objective	MCS11:Single objective lens: 4X/10X/20X objective lens optional MCS21:Single objective lens: 4X/10X/20X objective lens optional MCS2:Dual objective lens: Electric switching MCS2:4X/10X/20X objective lens optional
Platform	Flat stage, manual movement
Body size	MCS11: WLH：143mm232mm182mm MCS21/MCS22: WLH：214mm260mm182mm
Z-axis	Electric focus, automatic focus
Camera	MCS11: 5 megapixel bright field camera MCS21/MCS22:High-speed and high-sensitivity fluorescence camera 5 megapixels; chip size: 2/3 inch; frame rate: 40fps

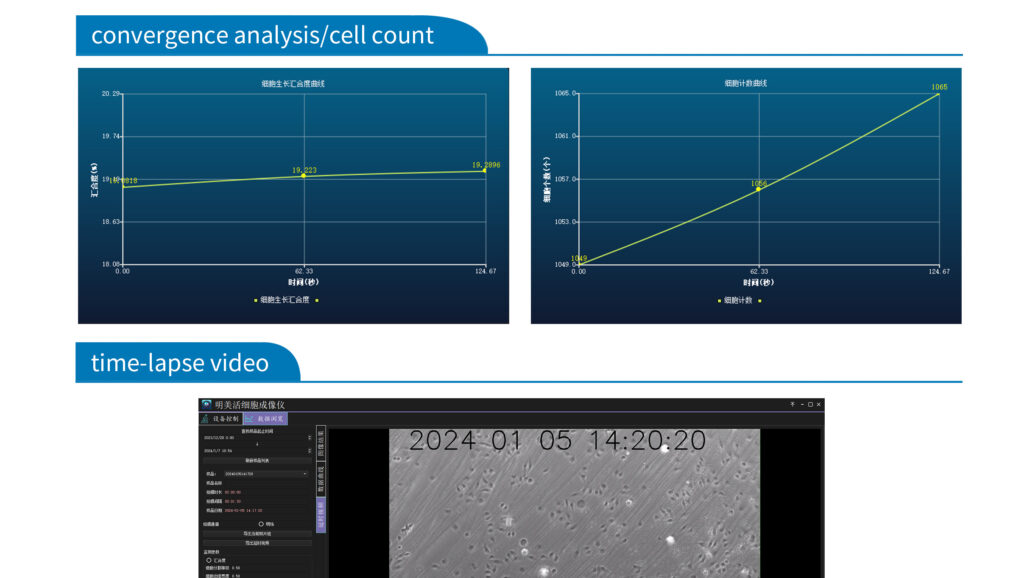

Software	Adopt C/S architecture, support remote control, including lighting control, camera control, photo taking, video recording, time-lapse photography, cell counting, cell confluence, scratch test; external network control, email reminder
Data transmission/power supply	USB data cable + DC power supply cable
Work Environment	5-42˚C, 5-95%RH
