LED fluorescence module for Olympus CKX53 microscope

Inverted LED fluorescence module MIF-LED

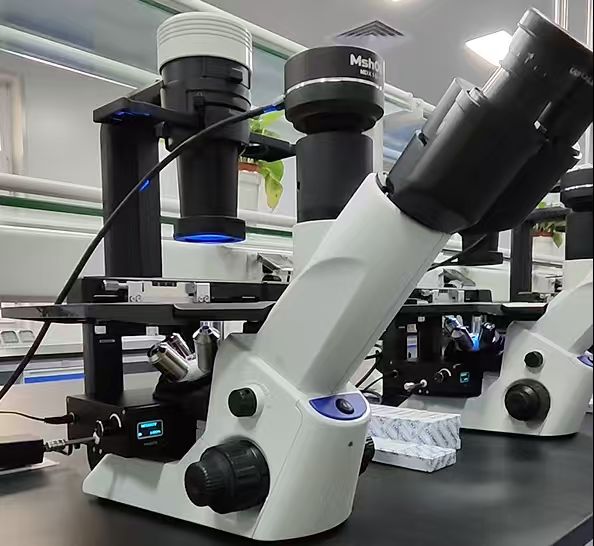

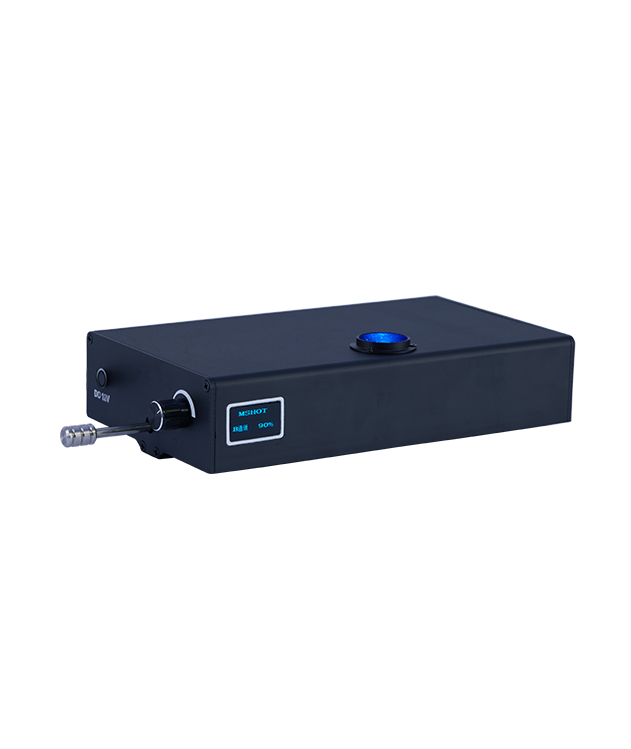

MIF-LED is a fluorescence attachment in LED light source, it is used to upgrade inverted biological microscope to fluorescence microscope. Special with built-in color LED lamps and fluorescence filters, the illuminator is well fit to Olympus inverted microscope for live cell. On purpose of user friendly , the products is lightweight and small volume. Digital screen shows and remember each channel light intensity from 0~100%.

Categories: Epi-LED Fluorescence module, Fluorescence modules & LED illuminators, Inverted fluorescence module MIF-LED

Description

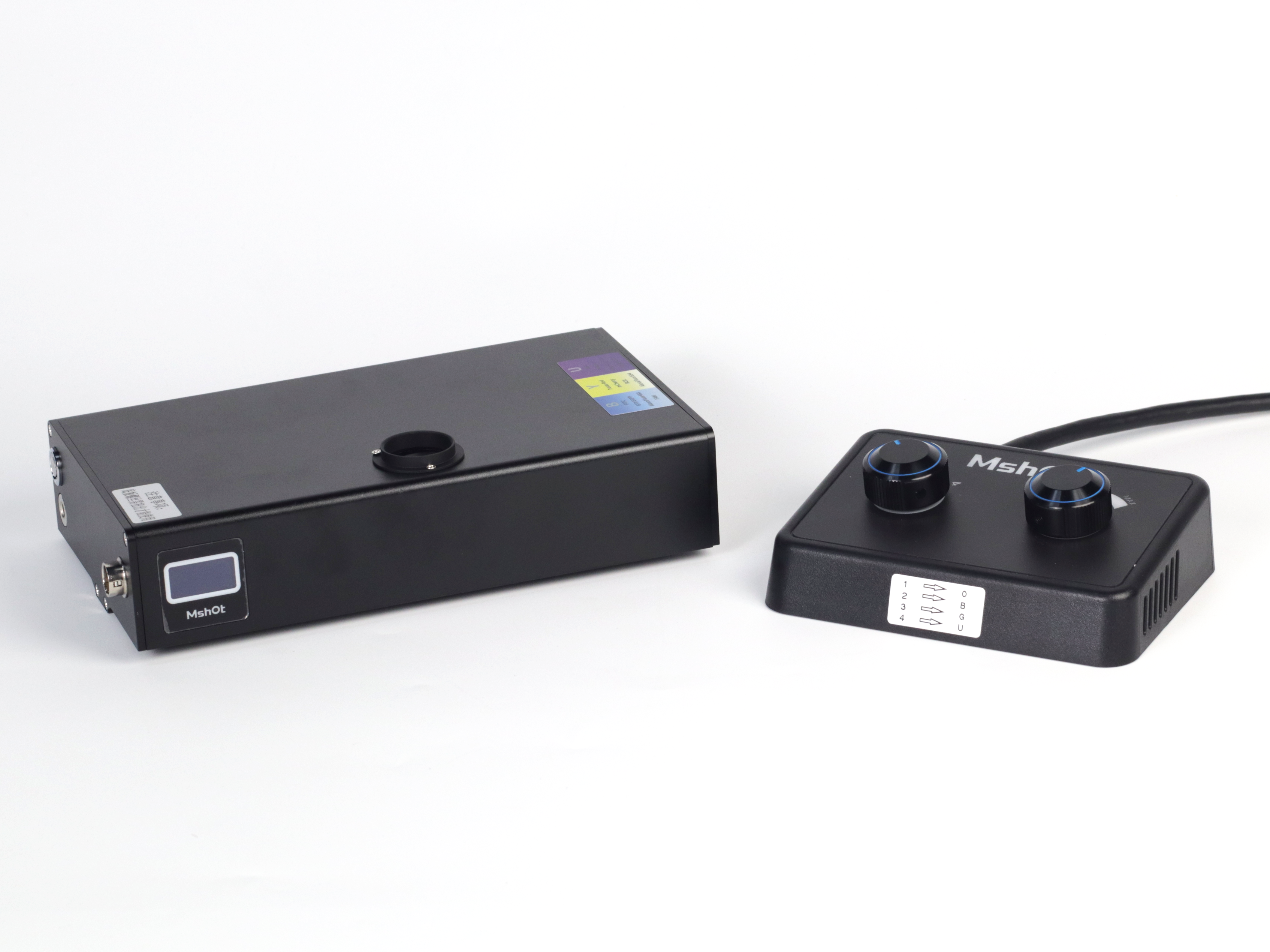

The inverted digital display fluorescence module is designed to upgrade inverted biological microscope to fluorescence function. It takes three-color four-channel structure design, with three large-viewing field fluorescence channels and one bright field channel as standard. The band switching is stable and smooth. Users can freely choose the fluorescence band and quantity according to their needs. Based on the design concept of simple appearance and easy operation, it adopts LED cold light source, integrating the driving power supply, LED excitation light source and fluorescence filter group.

Feature

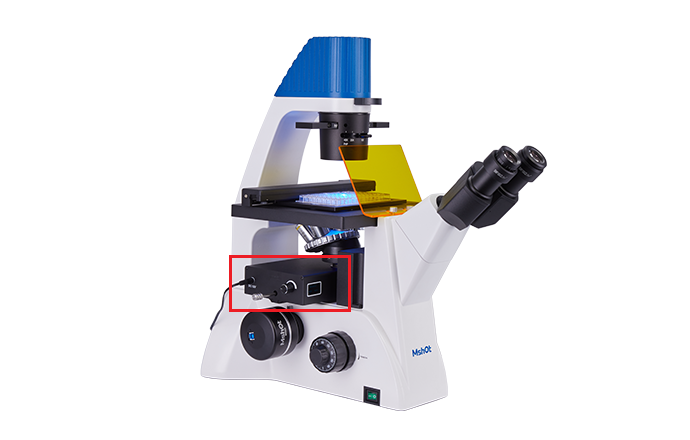

MIF-LED inverted fluorescence module features

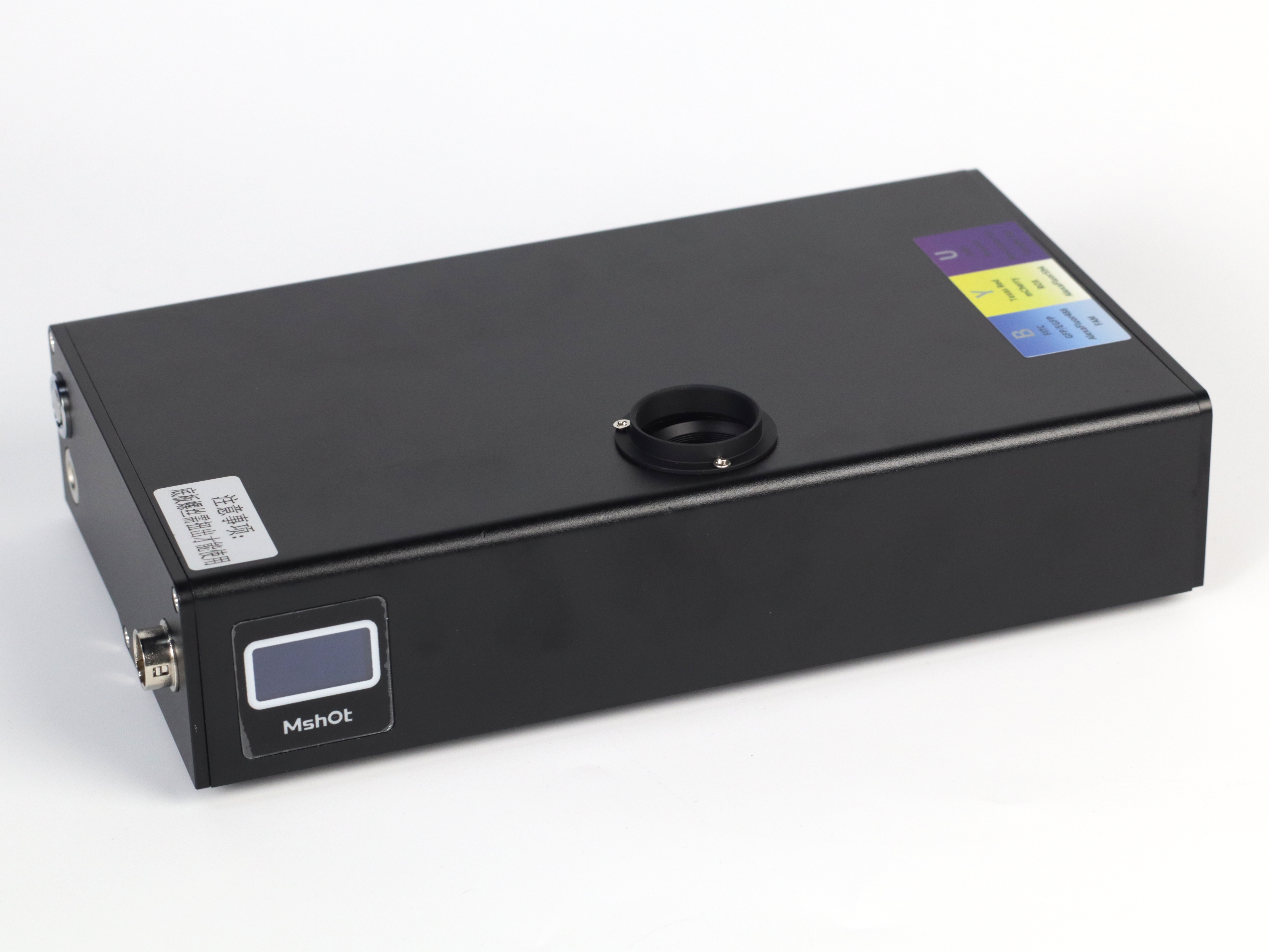

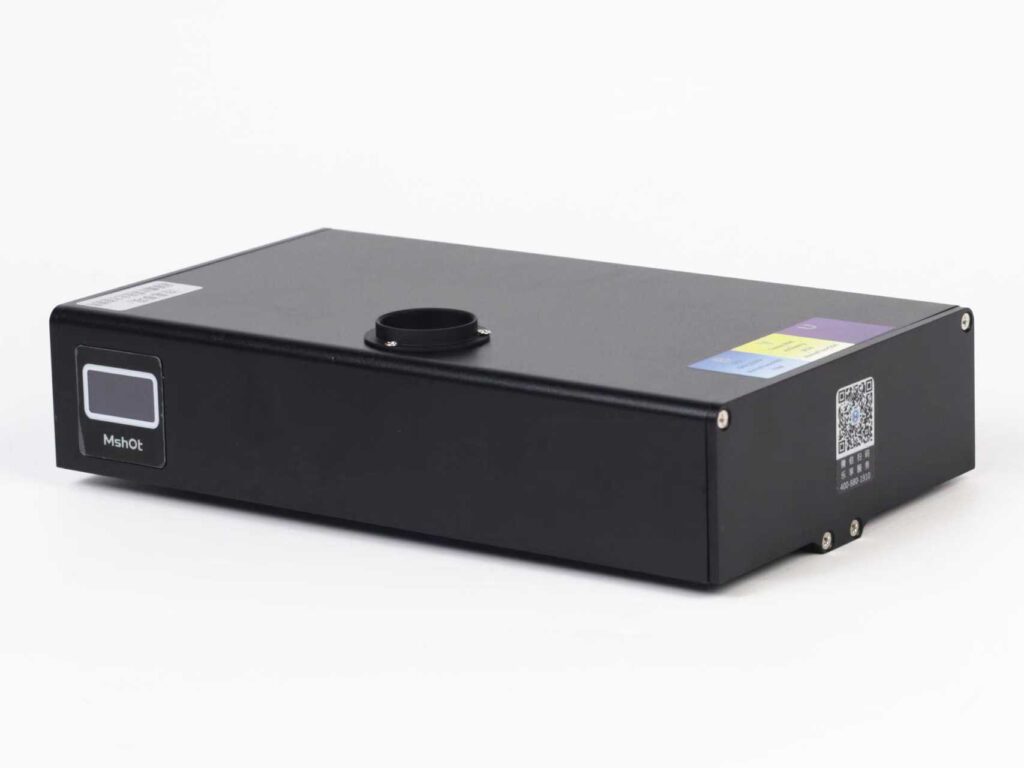

■ Compact design contains light source and filters in one unit.
■ Instant on-off, no need waiting of pre-heating or cooling.
■ Freely select fluorescence bands and quantities according to needs.
■ Fluorescence channel and brightness display function, display working status.
■ Brightness memory function, can remember the last used brightness.
■ Digital screen shows light intensity 0~100%
■ Light source synchronous switching with filter groups.
■ No requirement of external or added power supply.
■ CE, FCC, EMC, EU, ISO certified.

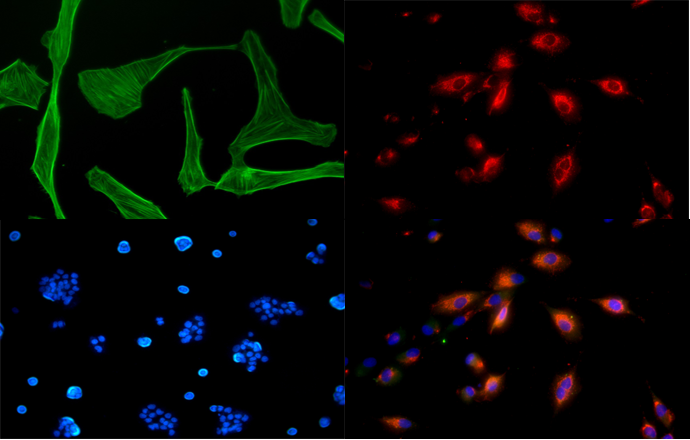

MIF-LED inverted fluorescence module classic applications

■ Live cells culture
■ Chromosome analysis in cytogenetics
■ Histochemistry in neural tissue and localization of proteins and nucleic acids
■ Location and quantification of certain substances in tissues and cells
■ Can measure the content of some components such as protein, DNA, RNA, etc. in cells

Specifications

Models
Item No.	LED lamps	Filter Groups
MIF-BG-LED / MIF-BY-LED	Blue and Green/yellow	Blue and Green/Yellow
MIF-BGU-LED / MIF-BYU-LED	Blue, Green/Yellow and UV	Blue,Green/Yellow and UV

* Four channels MIF2-UBGR/ MIF2-UBYR can be customized

* Olympus IX50/70, IX51/71, IX53/73 can be customized

Standard configuration
Model	LED lamp	Filter wavelength			Mainly Applied Fluorochrome
		Excitation filter	Dichroic mirror	Emission filter
B	Blue	475/30nm	>505nm	530/40nm	GFP / FITC /EGFP/ Malaria diagnostic/ Alexa 488 / Cy2@ / Fluo-4 / FluorX@ / Fluoro-Jade
G	Green	530/40nm	>570nm	575nmLP	PI / EB / EH /TRITC
Y	Yellow	560/40nm	>600nm	610nmLP	mCherry / Texas Red / AlexaFluor 594
U	UV	375/30nm	>415nm	460/50nm	DAPI / Hoechst 33342&33258 / AMCA/AMCA-X / Alexa 350
Remark*	Olympus CX41 UV excitation only can be long-pass filter
Light source	Blue &UV: 3W LED cold lamp for each filter group Green/Yellow: 5W LED cold lamp for each filter group
Observation	Fluorescence
	Bright field & phase contrast by microscope original lighting
Operation	Lever : B, G, UV/O

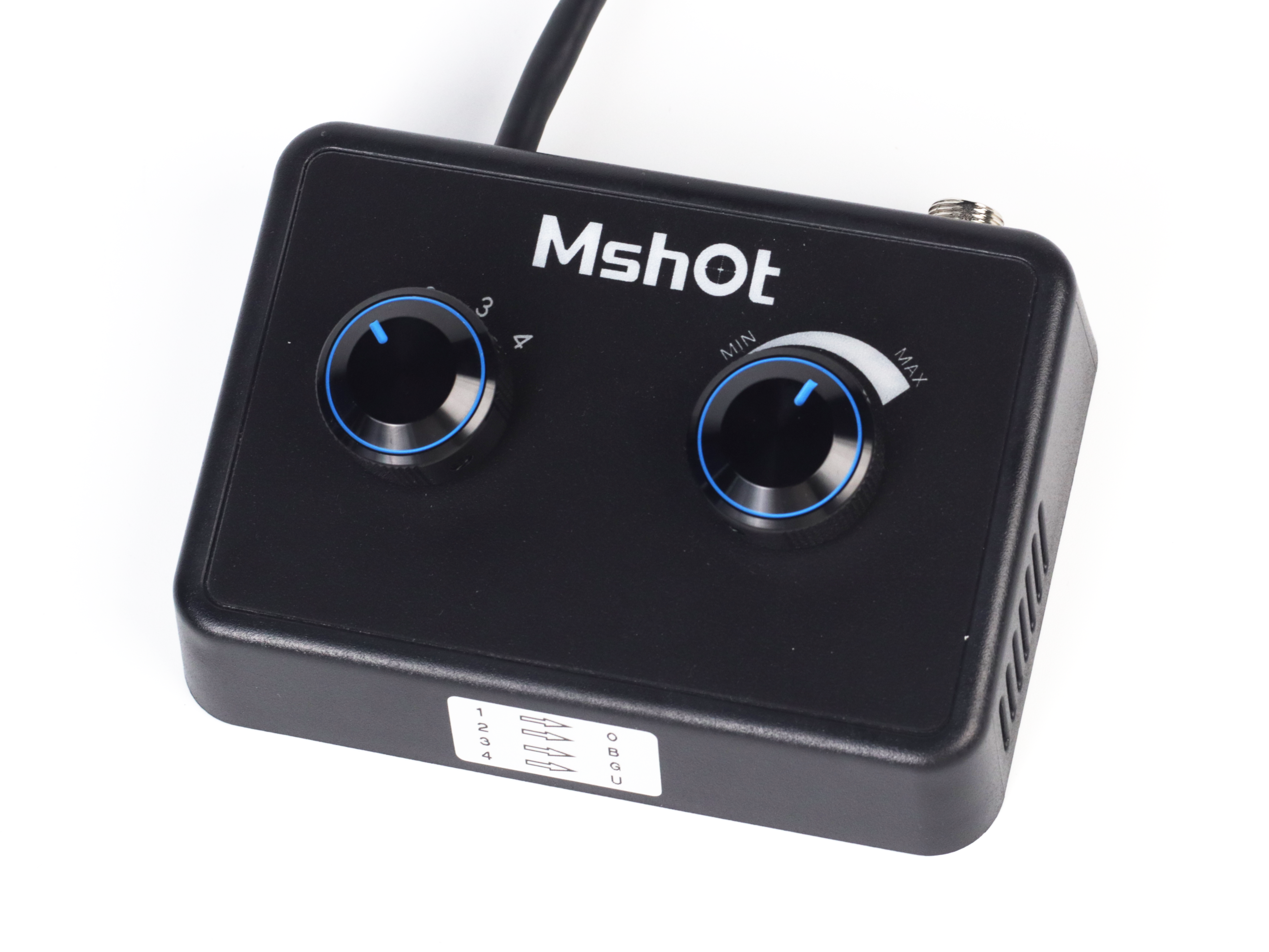

Power control	Rota-table knob, continuously adjustable brightness
Screen	Digital screen to show light intensity 0~100%, rememer light intensity of each color
Input power	DC 12V 2A

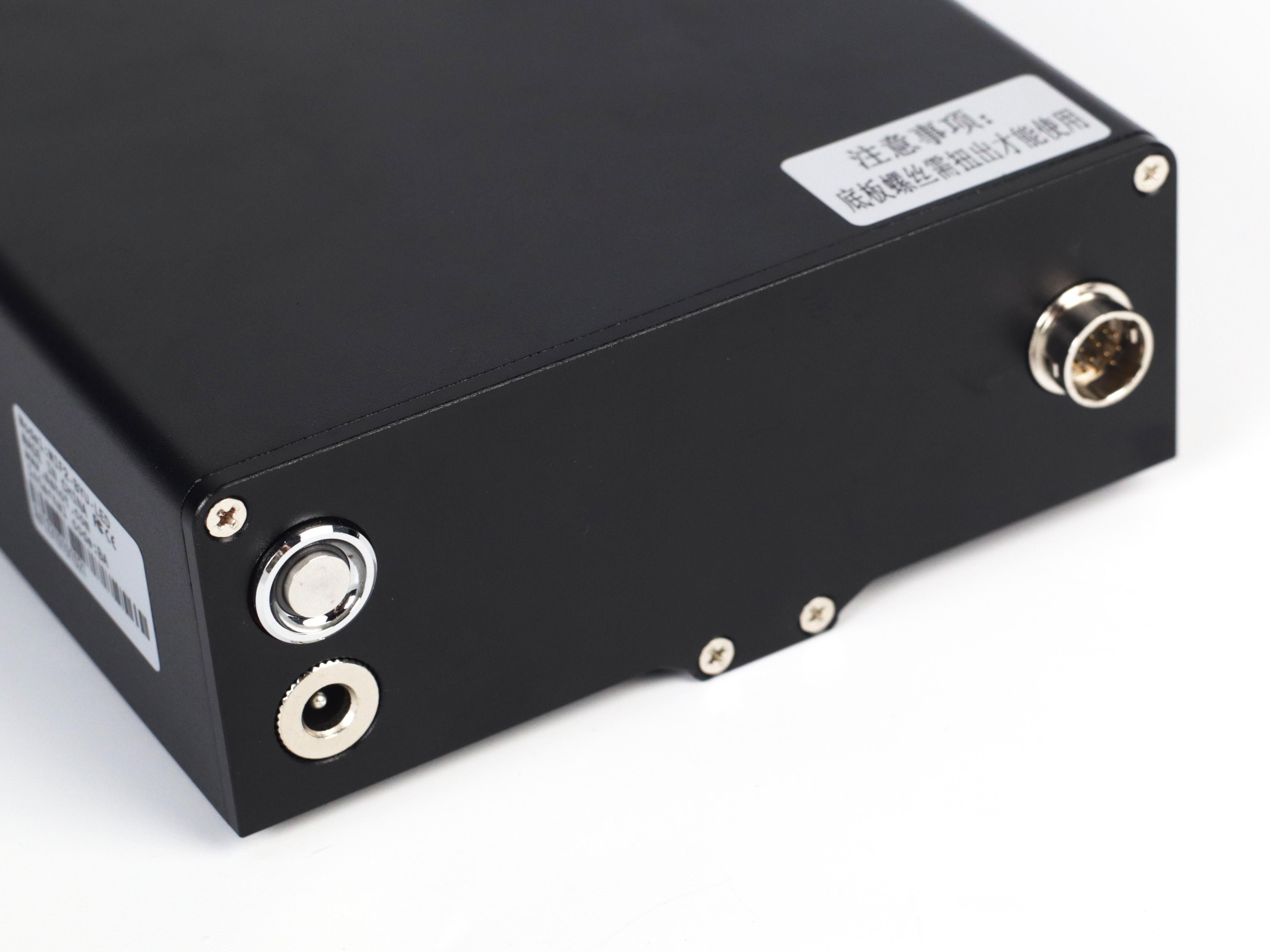

Shell	High rigid precision-cast aluminium with coating and vents

LED fluorescence module MIF-LED-IX1 user manual

LED fluorescence module MIF-LED-IX3 user manual

LED fluorescence module MIF-LED-CKX53 user manual
