Inverted fluorescence microscope MIX60-FL

Inverted fluorescence microscope MIX60-FL

The inverted fluorescence microscope MIX60-FL adopts a modular design concept. The digital display LED fluorescence module can realize three-color fluorescence observation. It comes with an OLED digital display screen, which intuitively displays the current channel and light intensity.

Categories: , ,
Share:

Get Exclusive Offers and Updates!

    Description

    The inverted fluorescence microscope MIX60-FL adopts a modular design concept. The digital display LED fluorescence module can realize three-color fluorescence observation, and up to 4 colors of fluorescence can be customized. It comes with an OLED digital display screen, which intuitively displays the current channel and light intensity. The light intensity of each channel is independently memorized. Switching back and forth does not require repeated adjustments, and the fluorescence intensity is more precise and controllable.



    Feature

    Digital intelligent module, more considerate design:

    ■ECO light-off function when people leave. The new sensor can be set to automatically turn off the light source after no one is using it for a certain period of time, realizing the function of turning off the lights when people leave and turning on the lights when people come, saving power and extending the life of the light source.

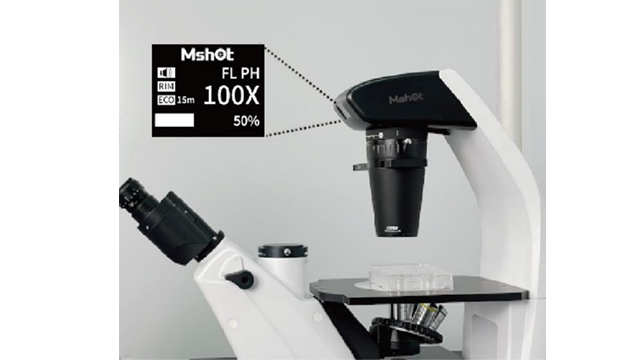

    ■Intuitive LED digital display screen The fuselage is equipped with an OLED screen, which intuitively displays the current objective lens magnification and light intensity index. It can also perform voice broadcast to facilitate the selection of objective lens magnification.

    Fluorescent light intensity memory function:

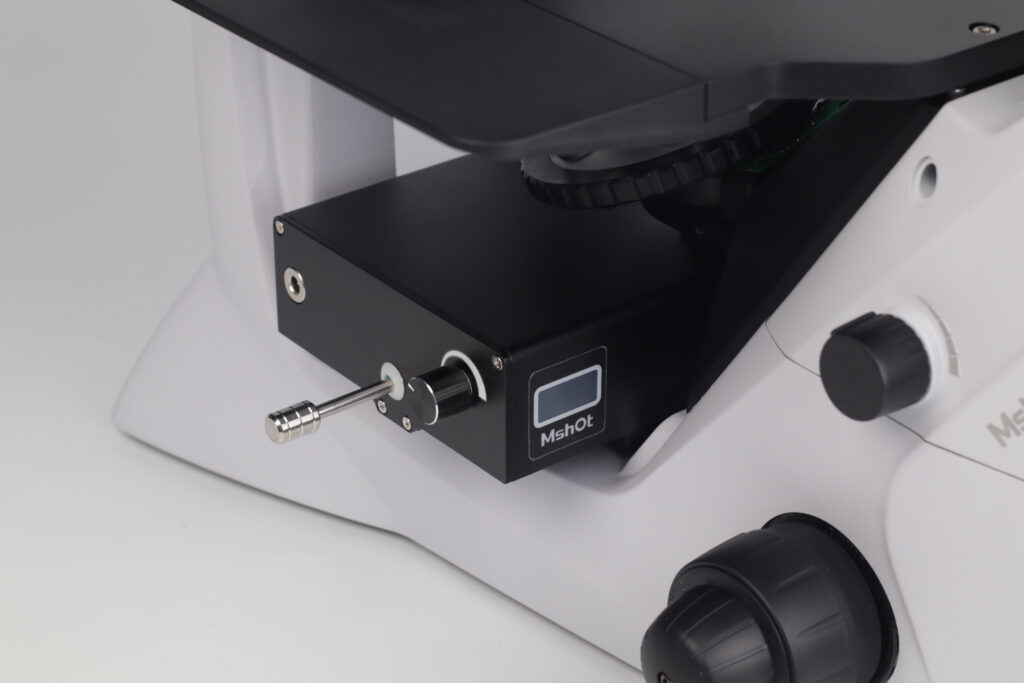

    The digital display LED fluorescence module can realize multi-color fluorescence observation. The built-in OLED screen intuitively displays the fluorescence channel and precise fluorescence brightness. The fluorescence light intensity of each channel is independently memorized, making it easy to use and switch without repeated adjustments.

    Multi-channel fluorescence configuration to meet diverse needs:

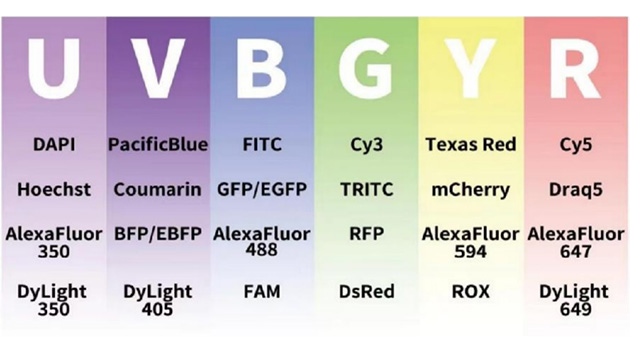

    The digital display LED fluorescence module comes standard with three excitation blocks: DAPI (U), FITC (B), and TRITC (G), which meet the excitation needs of mainstream fluorescent dyes. Various configurations such as Y/R/V are optional, which can achieve up to Customized four-color fluorescence. It also has different parameter settings for long pass and band pass to reduce fluorescence cross-color problems.

    Sample images:

    Specifications

    Item Specifications
    Host 200mm infinity optical system, the body is equipped with ECO light-off function and can draw power

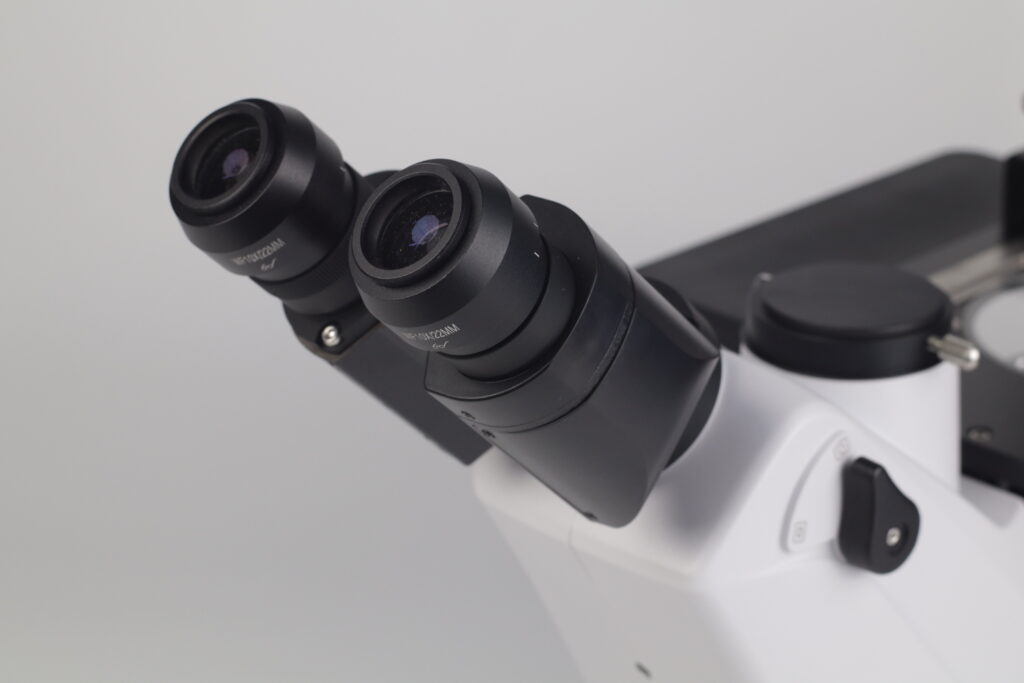

    Eyepiece SWF10X/22 plan eyepiece, high eye point, adjustable diopter
    SWF10X/23 plan eyepiece, high eye point, adjustable diopter (optional)
    Centering telescope
    Eyepiece tube Inclination angle 45°, interpupillary distance 50-70mm, body split ratio = 100:0 or 0:100
    Nosepiece Quintuple nosepiece,ball bearing with anti fungus device
    Stage Fixed stage size: 267.4mm×271.4mm
    XY stage moving ruler, mechanical movement, movement range: 110mm×75mm
    With stage expansion board
    Universal sample holder Match slides and different petri dish sizes
    Drip board Round transparent drip board: φ118mm

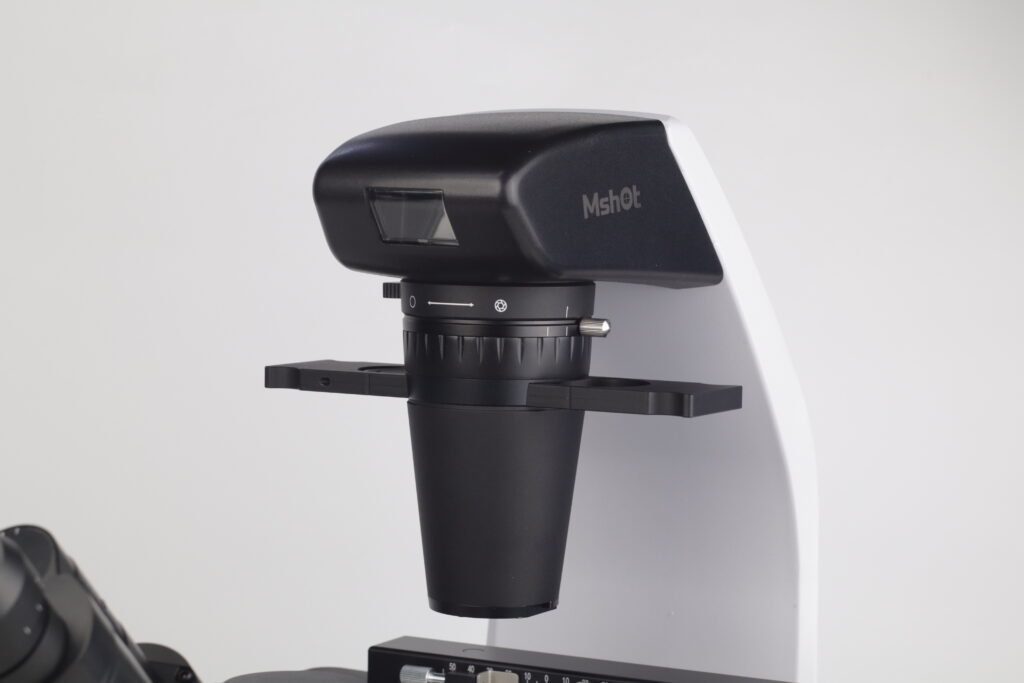

    Condenser Numerical aperture N.A.: 0.3, working distance WD: 72mm
    Detachable condenser, container height ≥19cm can be placed on the stage

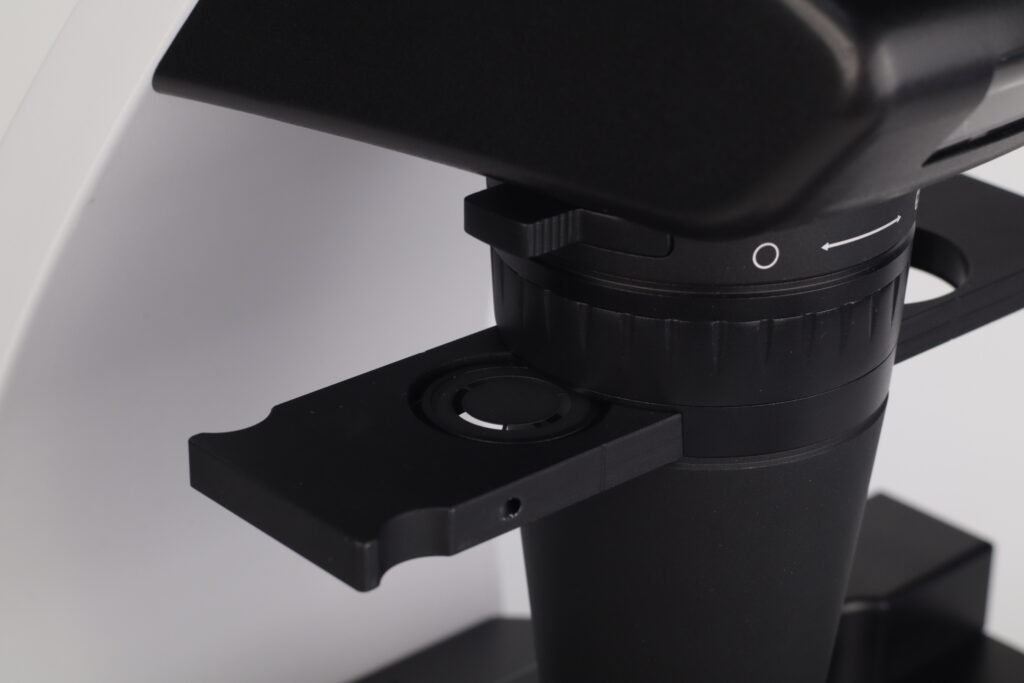

    Phase ring plate 10X ring, 20X/ 40X ring

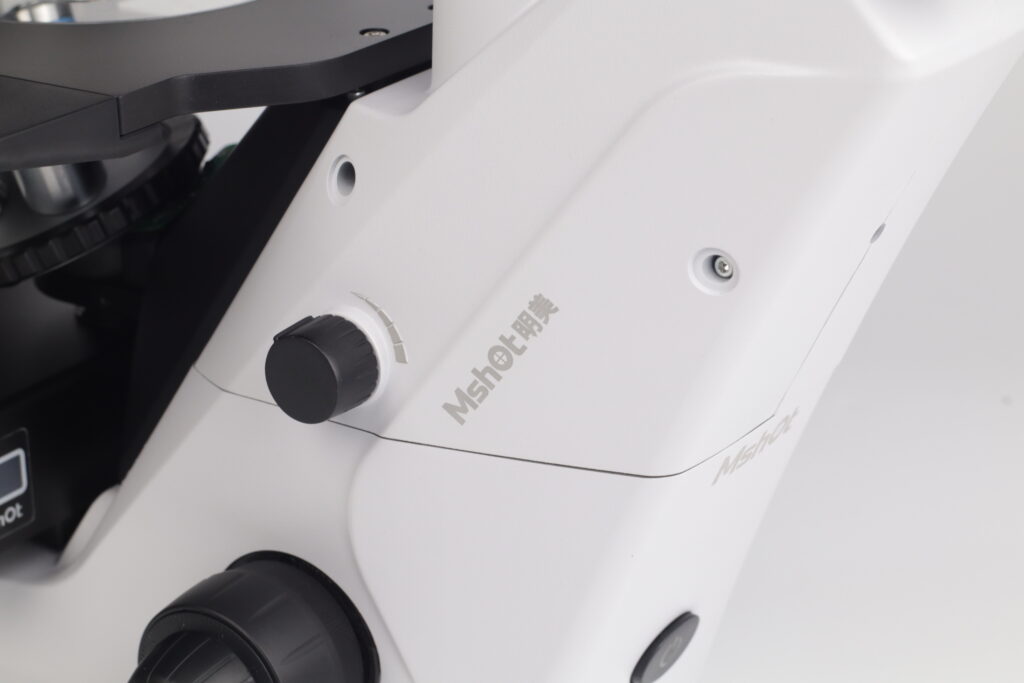

    Focusing mechanism Coaxial coarse/fine focus, with tension adjustable and up stop, minimum division of fine focusing is 2μm.
    Transmitted illumination system 3W full spectrum white LED, brightness continuously adjustable
    The filter holder can be inserted into φ34mm color filters (blue, green, yellow, etc.) and is removable
    With aperture diaphragm, aperture blades, manual control switch
    Digital display screen Displays the current working status, including ECO, voice function, objective lens multiple and brightness, etc., and can perform voice broadcast of the current objective lens multiple.
    Objective lens (match as needed) (Optional) Long working distance plan achromatic objective lens 4×/10×/20×/40×
    (Optional) Long working distance plan phase contrast objective lens 4×/10×/20×/40×
    Fluorescence module U:360‒390nm、B:450‒490nm、G:510-550nm
    U:360‒390nm, B:450‒490nm, Y:540-580nm (optional)
