Inverted fluorescence microscope MF53-N

MF53-N is a high end inverted fluorescence microscope close to research level developed by Mshot, the function similar to Olympus IX. The microscope adopts excellent quality Infinity Independent Achromatic Optical System to make sure better fluorescence imaging. Support phase contrast observation, bright field and fluorescence application. MF53-N inverted fluorescent microscope is ideal for live cell laboratory microscopy imaging.

Category: Inverted fluorescence microscopes

Description

The inverted fluorescence microscope MF53-N adopts an excellent infinity achromatic independently corrected optical system and is equipped with a long working distance plan achromatic objective and a wide field of view eyepiece. Excellent weak fluorescence imaging, using a turntable fluorescence switching method, which can be configured with a variety of fluorescence including UV, V, B, G, Y, R, etc., and can observe DAPI, FITC, TRITC, Alexa Fluor series, Cy3 series, etc. Fluorescent dyes are widely used in CTC detection, FRET, cellular immunity and other fields.

Feature

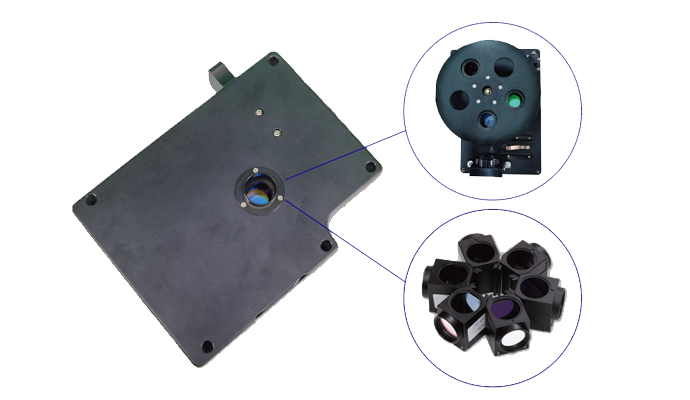

5 cube/6 cube fluorescence module:

It is convenience to exchange filter cubes in turret flfluorescence module, satisfy observation of most fluorescence fluorophores.

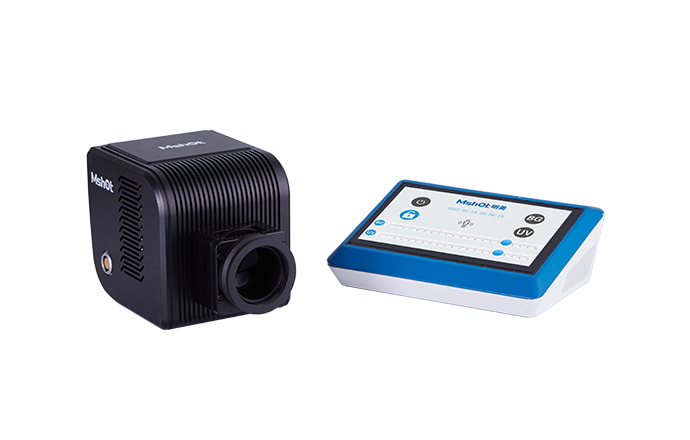

Fluorescence illumination system:

Long working life broad-spectrum LED light source in high power offers enough and even brightness, instant on and off without preheating.

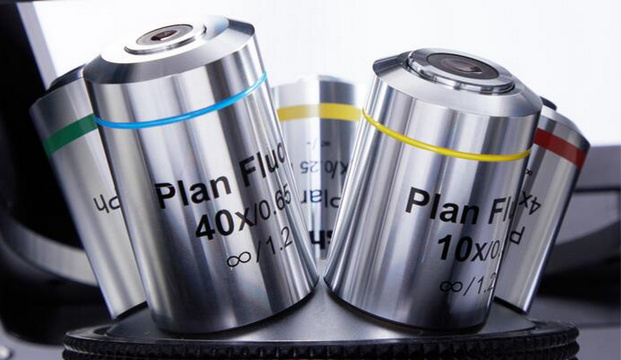

Semi-apochromat fluorescence objective:

The high numerical aperture Semi-apochromat fluorescence objectives have high definition and fluorescence transmittance properties. It can produce sharp images under bright field fluorescence and can meet the requirements of observation in various fluorescence fields.

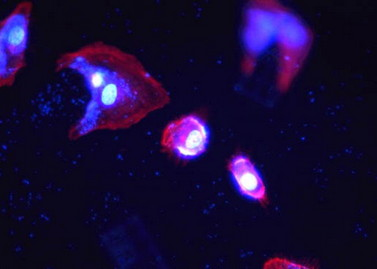

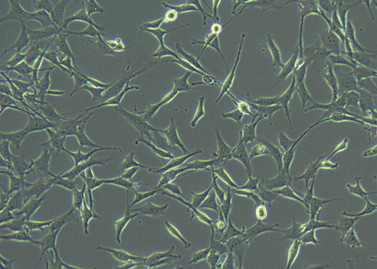

Sample images:

Specifications

Parts	Specification		Standard	Optional
Eyepiece	Wide Field Plan eyepiece WF10X/23mm, high eye point		•
Eyepiece	Centering telescope		•
Observation tube	Binocular observation tube, 45°inclined, pupil distance adjust range 50-75mm, diopter adjustable		•
Nosepiece	Quintuple revolving nosepiece with bearing inner location and anti-fungus device		•
Objectives	Infinity long working distance plan achromatic objectives Plan 4X/0.12 WD:10.8mm		•
	Long working distance semi-apochromatic fluorescence objective L Plan Fl 10X/0.32 WD: 7.1mm		•
	Long working distance semi-apochromatic fluorescence objective LWD Plan Fluor 40X/0.65 WD：3.0mm		•
	Infinity long working distance plan achromatic objectives Plan 10X/0.26 PH WD:10.5mm		•
	Infinity long working distance plan achromatic objectives Plan 20X/0.45 PH WD:5mm		•
	Infinity long working distance plan achromatic objectives LWD Plan 4X/0.1 WD:11.98mm			•
	Infinity long working distance plan achromatic objectives Plan 10X/0.26 WD:10.5mm			•
	Infinity long working distance plan achromatic objectives Plan 20X/0.45 WD:5mm			•
	Infinity long working distance plan achromatic objectives Plan 40X/0.58 WD:2.5mm			•
	Infinity long working distance plan achromatic objectives Plan 10X/0.25 PH WD:9.3mm			•
	Infinity long working distance plan achromatic objectives Plan 20X/0.45 PH WD:5mm			•
	Infinity long working distance plan achromatic objectives Plan 40X/0.58 PH WD:2.5mm			•
	Infinity long working distancesemi-apochromatic fluorescence objective Plan Fluor 4X/0.13 WD:18.5mm			•
	Infinity long working distancesemi-apochromatic fluorescence objective Plan Fluor 10X/0.3 WD:7.1mm			•
	Infinity long working distance semi-apochromatic fluorescence objective Plan Fluor 20X/0.45 WD:5.9mm			•
	Infinity long working distance semi-apochromatic fluorescence objective L Plan Fl 40X/0.65 WD：3.0mm			•
	Infinity long working distancesemi-apochromatic fluorescence objective Plan Fluor 60X/0.75 WD:1mm			•
	Long working distance plan objectives Plan4X PH /0.12 W, WD：10.8mm			•
LED fluorescence attachment and illuminating system	Individual channels LED light source MG120			•
	100W Broad-spectrum LED light source			•
	Sixtuple filter cube positions fluorescence attachment With 3 filter cubes, available to add and exchange filters		•
	Filter cube	Filters
	U	EX：375/28nm；DM：415nm；EM：460/50nm	•
	B	EX：470/40nm；DM：505nm；EM：535/40nm	•
	G	EX：530/40nm；DM：565nm；EM：605/55nm	•
Sextuple fluorescence module and its filter cubes	FB-U-M	EX：375/30nm；DM：415nm；EM：460/50nm		•
	FB-B-M	EX：475/30nm；DM：505nm；EM：530/40nm		•
	FB-G-M	EX：540/25nm；DM：565nm；EM：605/55nm		•
	FL-U-M	EX：355/50nm；DM：410nm；EM：420nmLP		•
	FL-B-M	EX：475/30nm；DM：505nm；EM：510nmLP		•
	FL-G-M	EX：530/40nm；DM：570nm；EM：575nmLP		•
	FL-Y-M	EX：560/40nm；DM：600nm；EM：610nmLP		•
	FB-Y-M	EX：560/40nm；DM：600nm；EM：635/60nm		•
	FB-R-M	EX：620/50nm；DM：655nm；EM：690/50nm		•
Quintuple fluorescence module and its filter cubes	UV	EX:355/50nm；DM:400nm；EM:415nmLP	•
	B	EX:475/30nm；DM:500nm；EM:515nmLP	•
	G	EX:530/40nm；DM:570nm；EM:590nmLP	•
	FB2-U-M	EX:375/30nm；DM:415nm；EM:460/50nm		•
	FB2-B-M	EX:475/30nm；DM:505nm；EM:530/40nm		•
	FB2-G-M	X:540/25nm；DM:565nm；EM:605/55nm		•
	FB2-Y-M	EX:560/40nm；DM:600nm；EM:635/60nm		•
	FB2-R-M	EX:620/50nm；DM:655nm；EM:690/50nm		•
	FL2-Y-M	EX:560/40nm；DM:600nm；EM:610nmLP		•
Focus system	Coaxial coarse and fine with limit and locking devices, low coaxial focus adjusting handle, Minimum adjustment gradations: 1 µm		•
Stage	Fixed stage 240mmX260mm,with low-positioned X/Y coaxial control knob, travel distance 135mmX85mm		•
Transmitted illumination system	Long working distance condenser 72mm, NA 0.30 with triple phase contrast slider 10X/20X/40X		•
	LED brightness contentiously adjustment		•
	Black color light shield		•
Slide glass holder	Multi-function slide glass holder(Φ35mm)			•
Slide glass holder	Multi-function slide glass holder(Φ90mm)			•
Camera adapter	External 1X C-mount adapter		•
