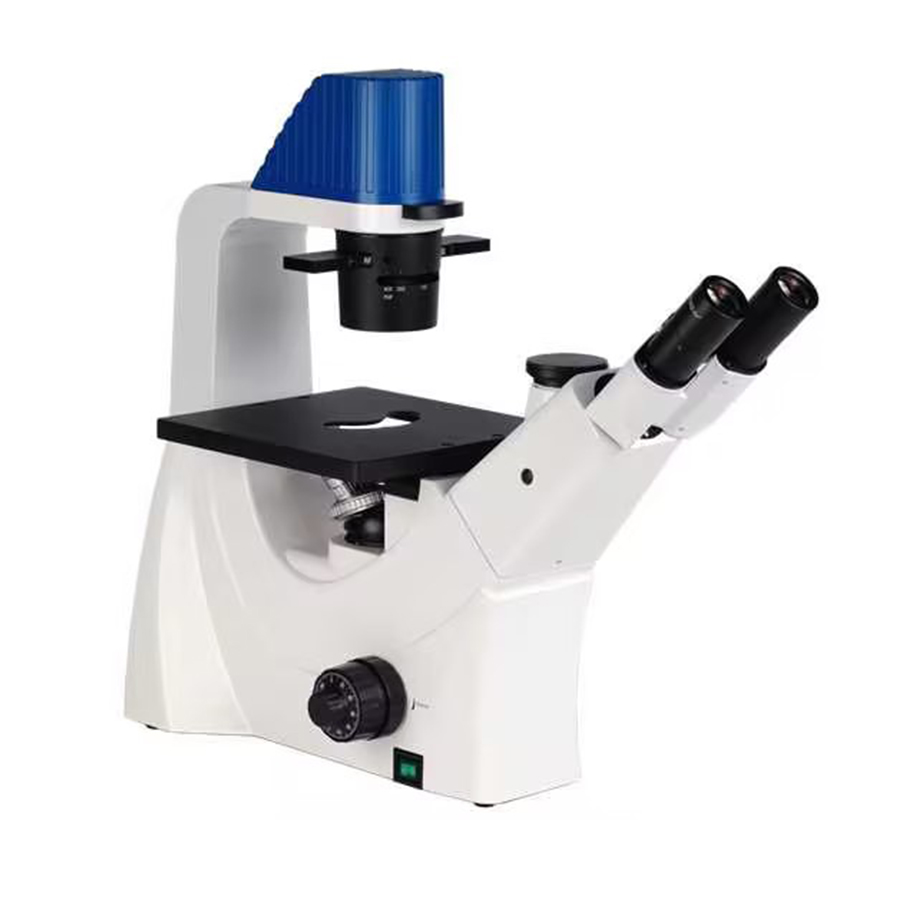

Inverted biological microscope MI40

The inverted microscope MI40 adopts an excellent infinity optical system to provide excellent optical performance. It can meet the need of brightfield and phase contrast observation.

Description

The inverted microscope MI40 adopts excellent infinity optical system to provide excellent optical performance. The streamlined design concept and compact and stable high-rigidity body fully reflect the shock-proof requirements of microscopic operations. The ultra-long working distance focusing system can conduct contamination-free observation of cultured cells in tall petri dishes or cylindrical flasks. The lighting system fully considers heat dissipation and safety. The ergonomic design concept makes the operation more convenient, comfortable and safe, and the space is free. broad. A phase contrast device can be added to the optical path to achieve phase contrast microscopy.

Feature

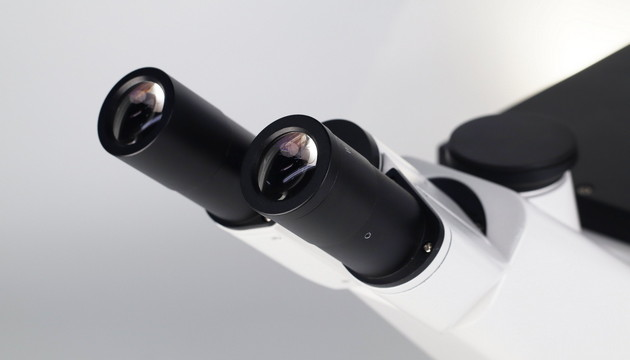

Infinity optical system, excellent imaging:

Adopt excellent infinity optical system to provide excellent optical performance.

Highly rigid body, stable, shockproof and durable:

The streamlined design concept, compact and stable high-rigidity body, fully reflects the anti-vibration requirements of micromanipulation.

Highly cost-effective, suitable for brightfield and phase contrast observation:

Phase contrast device can be added to the optical path to achieve phase contrast microscopic observation.

Sample images:

Specifications

ltem	Specifications
Eyepiece	Flat field eyepiece WF10X/20mm(1 adjustable diopter)
Observation head	45°tilt,binocular interpupillary distance adjustment range:55-75mm,50-50 light beam
Nosepiece	Quintuple nosepiece,ball bearing with anti-fungus device
Focusing mechanism	Coarse and fine motion coaxial,micro motion grid value:2um,coarse motion tightness adjustable
Focusing mechanism	with locking and limiting device,effective focusing stroke 11mm
Objectives	Long working distance plan objective lens LWD Plan4X/0.1 WD:11.98mm
	Long working distance plan objective lens LWD Plan40X/0.6 WD:3.76mm
	Long working distance plan objective lens LWD Plan10X PHP/0.25 WD:10.6mm
	Long working distance plan objective lens LWD Plan20xPHP/0.4 WD:7.97mm
Condenser	Long working distance condenser,working distance 70mm,with plug-in phase contrast device
Stage	Flat stage,208*225mm
Phase contrast system	Pull plate type phase contrast condenser,the center of the phase contrast ring is adjustable
illumination system	9W LED,brightness adjustable
