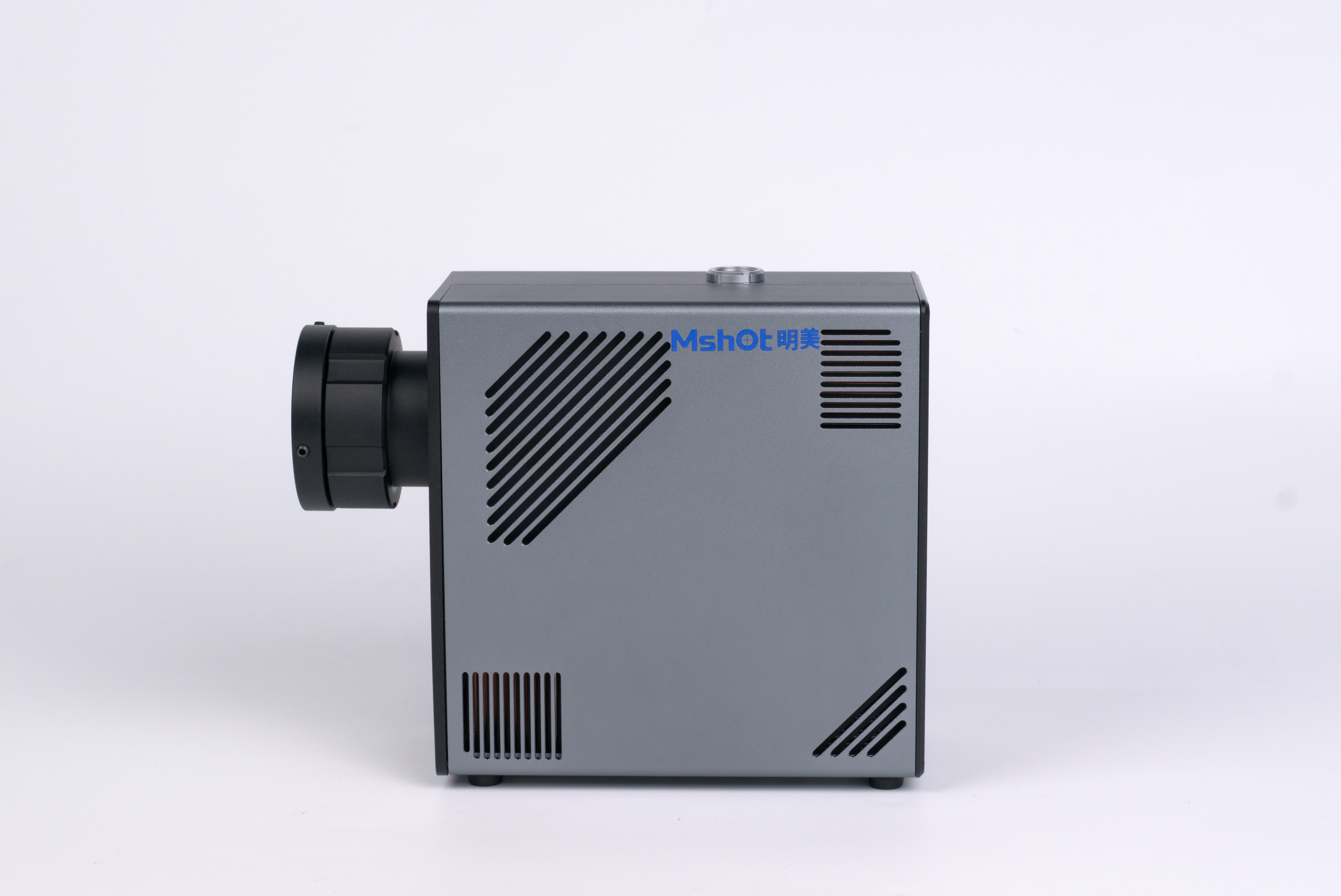

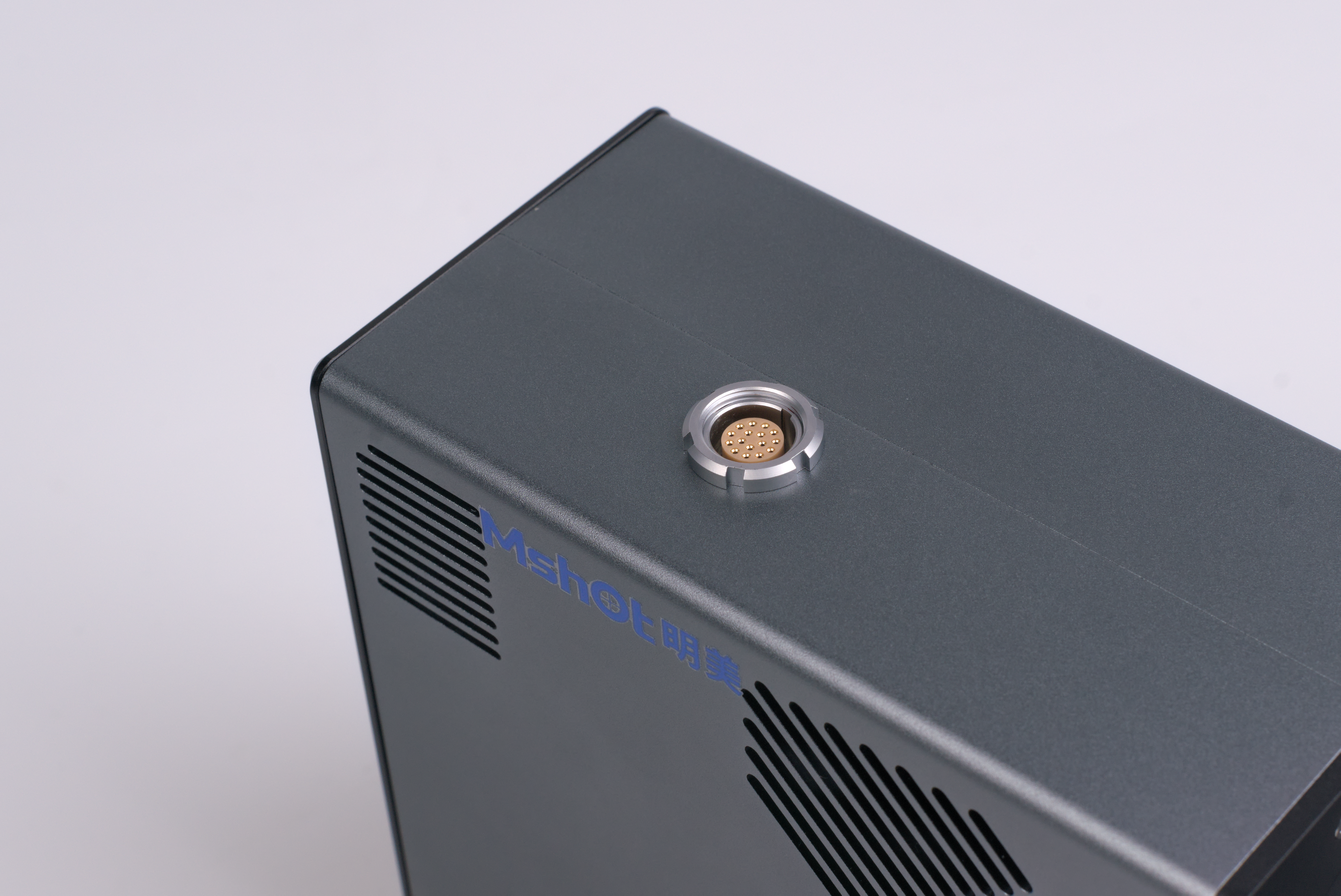

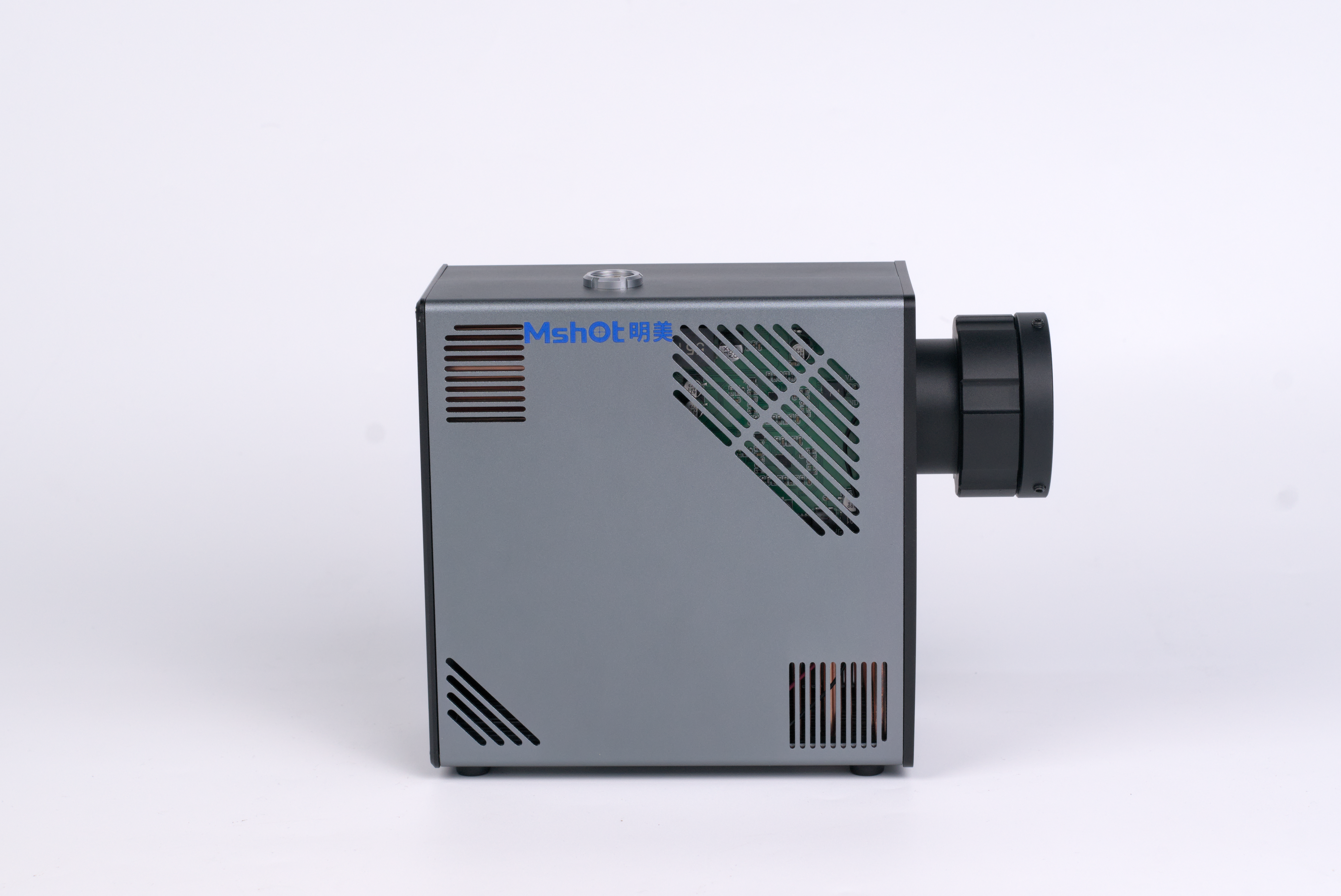

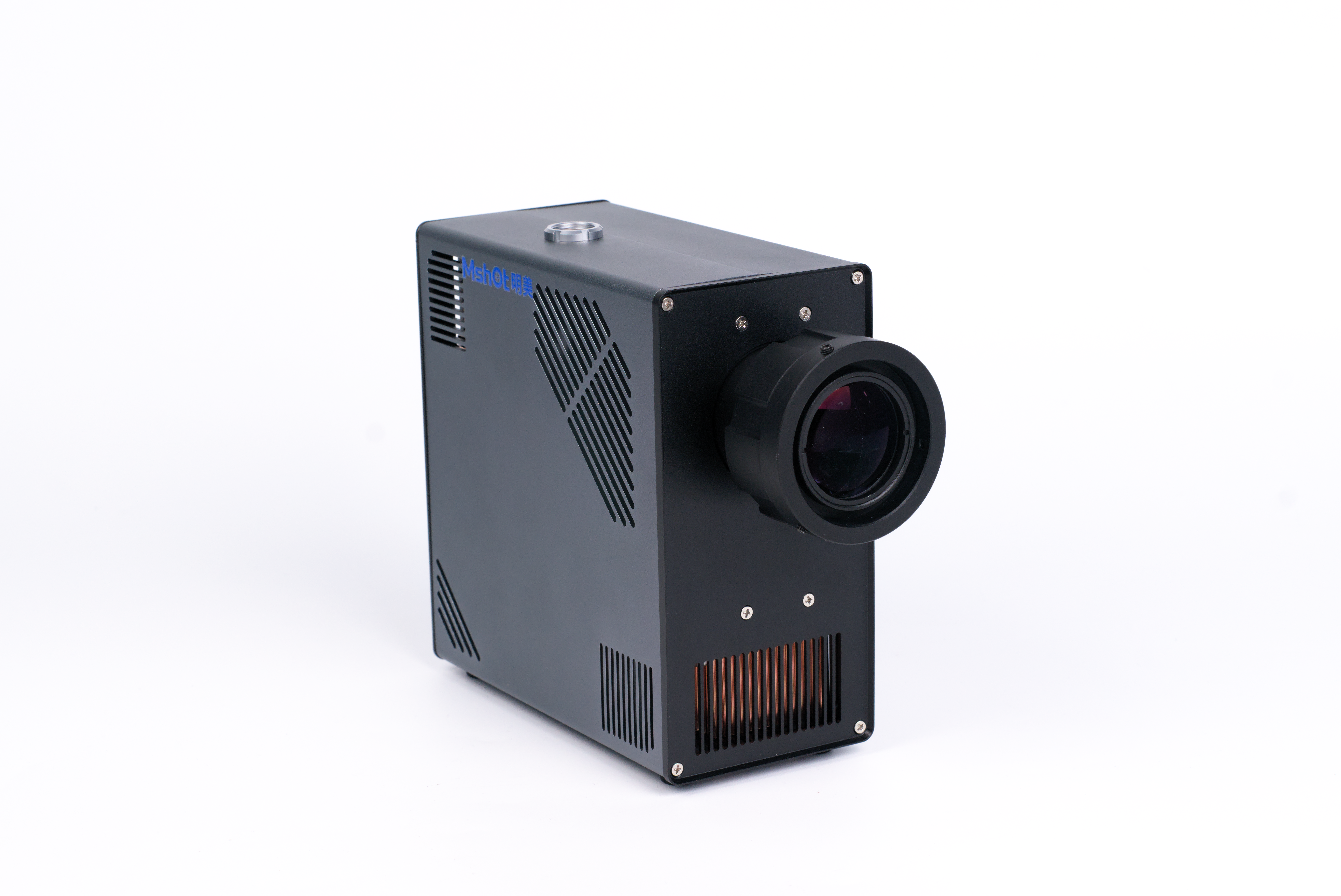

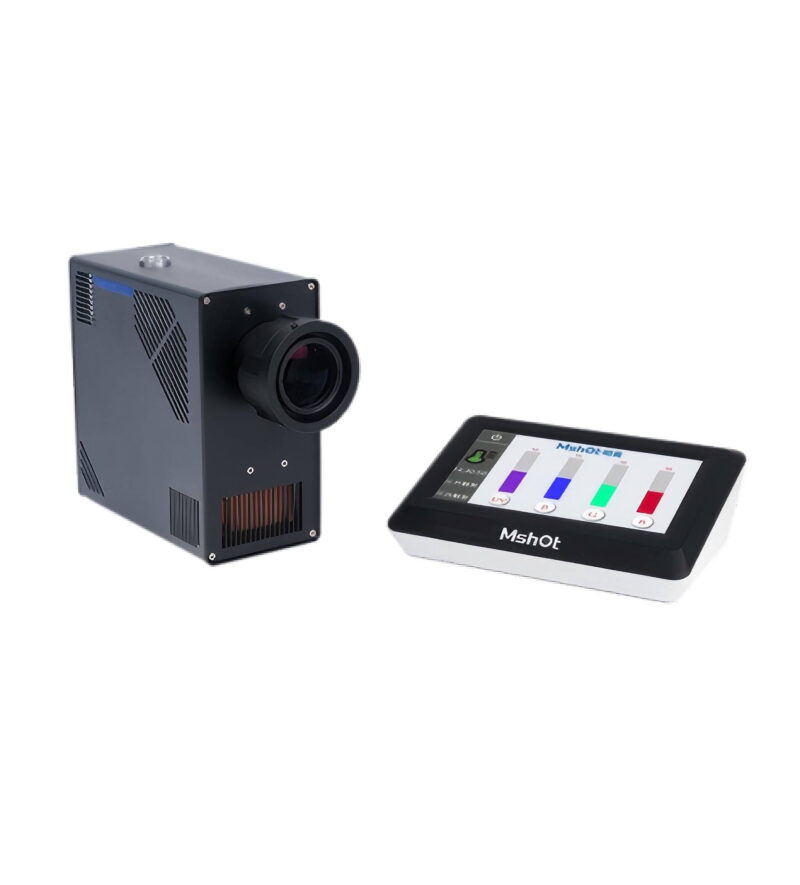

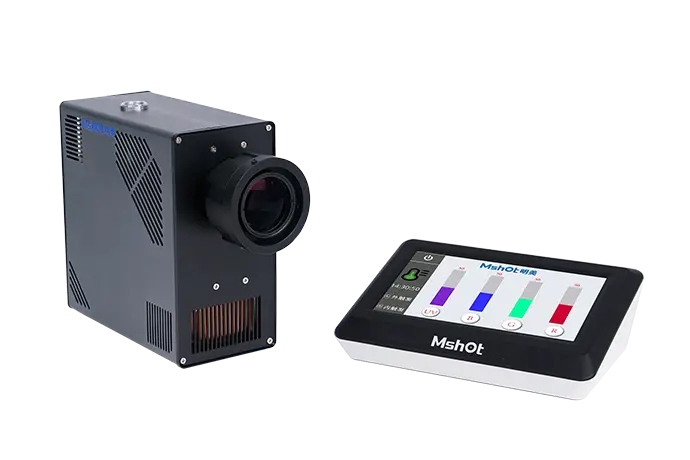

Individual channels LED light source MG120

Individual channels LED light source MG120

Individual channels LED light source takes use of 4 high power LED lamp, providing high brightness and uniform brightness without lamp shadow, each channel light intensity can be controlled separately and support TTL electric frequency pulse mode trigger. The light source is compatible to microscope of Olympus, Nikon, Leica and Zeiss.

Categories: , ,
Share:

Get Exclusive Offers and Updates!

    Description

    The four-channel light source MG-120 is fluorescent microscope light source based on LED technology. It is composed of 4 high-power LED lamp beads. Each group can independently control the switch and brightness. The spectrum covers commonly used fluorescence such as DAPI, FITC, YFP, and CY5. The dye has the advantages of high light intensity, ready-to-use, and long life. Optional fiber output, USB program control and other configurations are available, and it is suitable for mainstream fluorescence microscopes such as the four major brands.

    Feature

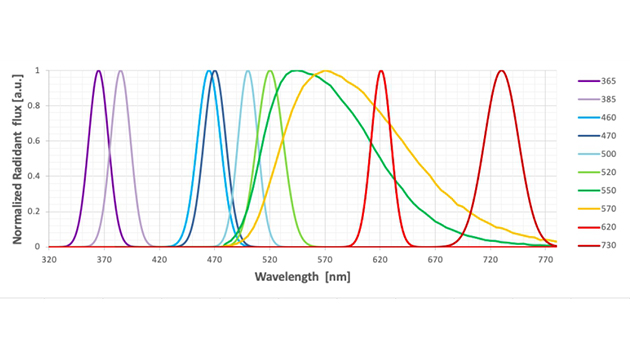

    LED technology：

    LED fluorescent light source has obvious advantages over traditional mercury lamps. It does not require preheating, can be turned on and off at any time. The brightness can be controlled with 1% accuracy, and the brightness is stable and uniform. The lifespan can be up to 50,000 hours, saving maintenance. cost.

    Visiable touch screen control panel：

    Digital screen touchable control panel works for users to continuously adjust light intensity and choose different lighting mode.

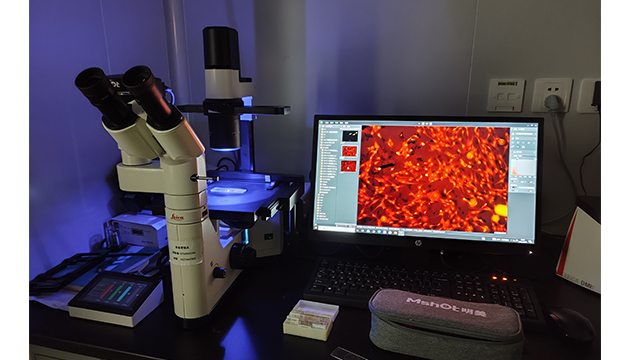

    Match four major brands of fluorescence microscopess：

    It can be matched with four major brands of Olympus BX43, Nikon 80i, Leica DM2500, Zeiss Observer D1 ,etc and other domestic mainstream brand fluorescence microscopes. Optional optical fiber output configuration.

    Sample images:

    Specifications

    Output spectrum Standard configuration 385/460/550/625nm
    Light angle 7°
    Fiber coupler Liquid optical waveguide：3mm、5mm
    Input voltage 12V
    LED power 72W
    Input voltage Touch screen controller, software trigger/camera external trigger
    Brightness memory function Four channels
    Control mode Four independent controllers, Dimming range: 0-100%, Dimming accuracy:1%
    Heat dissipation mode Forced air cooling
    Working temperature 5℃-45℃
    Size Light source：L180mm x W 70mm x H168mm
    Control box：L 143mm x W 110mm x H 50mm



    Resources

    Icon

    Individual channels LED illuminator MG120-2 brochure

    1 file(s) 493.50 KB
    Download

    Icon

    Fluorescence microscope LED illuminator MG100 MG120 brochure

    1 file(s) 1.42 MB
    Download
