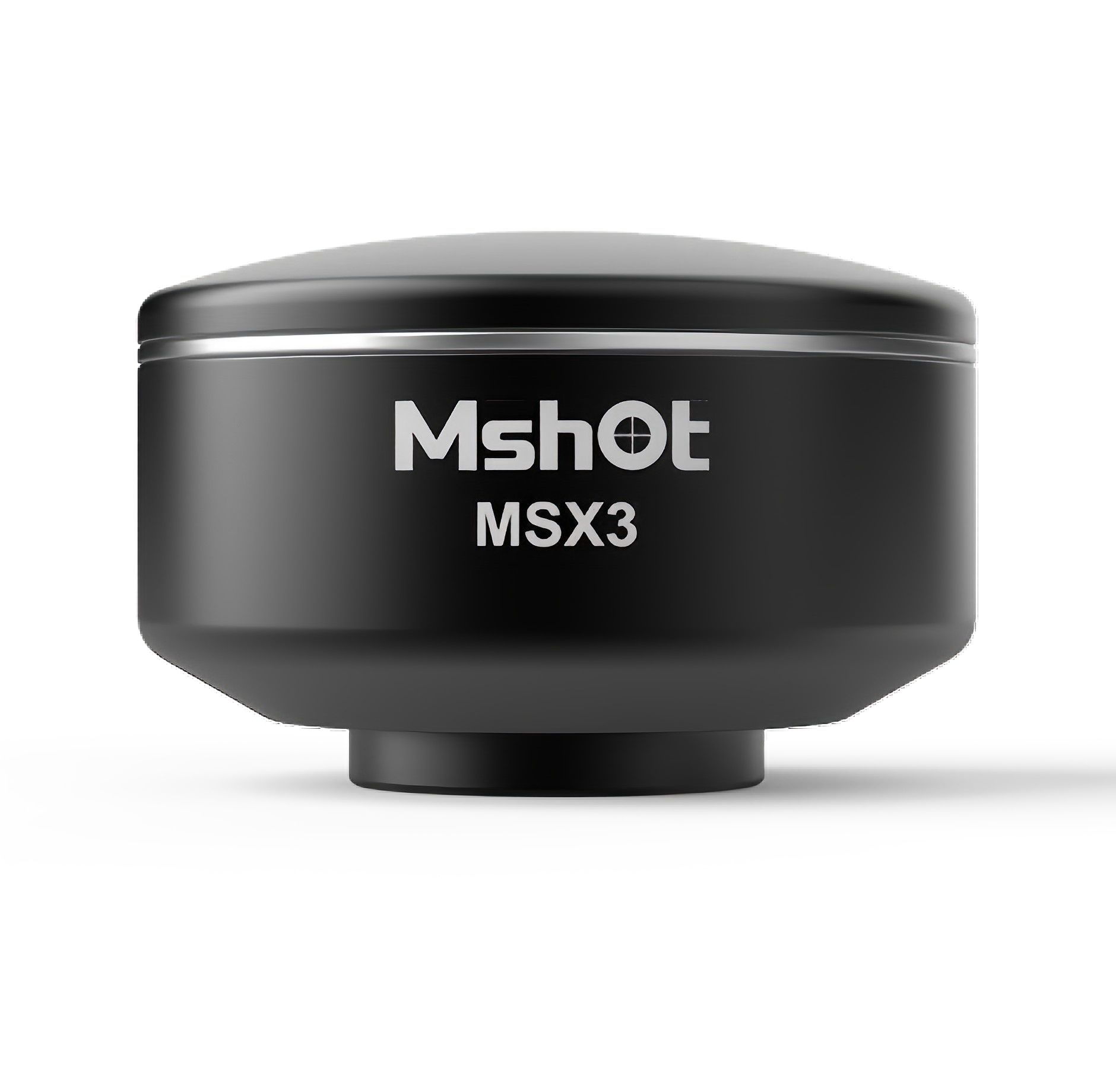

High sensitivity digital camera MSX3

The new high-sensitivity microscopic digital camera MSX3 uses an innovative back-illuminated image sensor and is an ideal tool for applications such as fluorescence photography, pathological diagnosis, metallographic analysis and stereoscopic observation.

Category:
Share:

Get Exclusive Offers and Updates!

    Description

    The new high-sensitivity microscopic digital camera MSX3 uses an innovative back-illuminated image sensor, which not only has a sensitivity that exceeds that of the human eye, but also achieves excellent low-noise characteristics. Even in dark places, the color and texture of objects that are difficult to identify can be truly reproduced, greatly improving the performance of digital cameras in low-light conditions. The camera has built-in the latest MS series hardware ISP image processing chip, which is specially optimized for microscope shooting scenes. It can accurately restore the fine structure and true color of the sample. Through hardware acceleration, it greatly improves the running speed of the camera. It is ideal for fluorescence photography, pathological diagnosis, and metallographic analysis. Ideal tool for applications such as and stereoscopic observation.

    Feature

    High resolution microscope camera:

    Back-illuminated image sensor, excellent low-noise, high-sensitivity performance

    1/1.6 inch photosensitive chip :

    Perfectly compatible with all types of microscope optical paths

    Up to 27fps at full resolution:

    The field of view aspect ratio is 1:1, truly restoring what you see through the eyepiece.

    Sample images:

    Specifications

    Item Specifications
    Model MSX3
    Effective pixels 12MP
    Sensor size 1/1.6 inches
    Pixel size 2.0um × 2.0 um
    Resolution and frame rate Resolution Frame
    3536 × 3536 27fps
    1768 × 1768 60fps
    Any size ROI
    Scanning Mode Progressive scanning / continuous output
    Shutter Rolling shutter
    Exposure time 100us ~ 15s
    Effective gain 1x – 15x
    Spectral Response 380nm ~ 650nm(With IRCUT)
    Trigger mode Software trigger
    Exposure Manual/ AUTO/area exposure
    White balance Manual/One push push/Area
    Image format TIF、BMP、JPG、RAW
    Software Interface DirectShow / TWAIN
    Operating system Windows 7/8/10 32/64bit
    Data interface USB3.0 ,5Gb/s
    Camera interface C-mount adapter
    Power supply USB 5V
    Operating environment Temp:0~40℃;humidity:10%~90%RH(No condensation)
