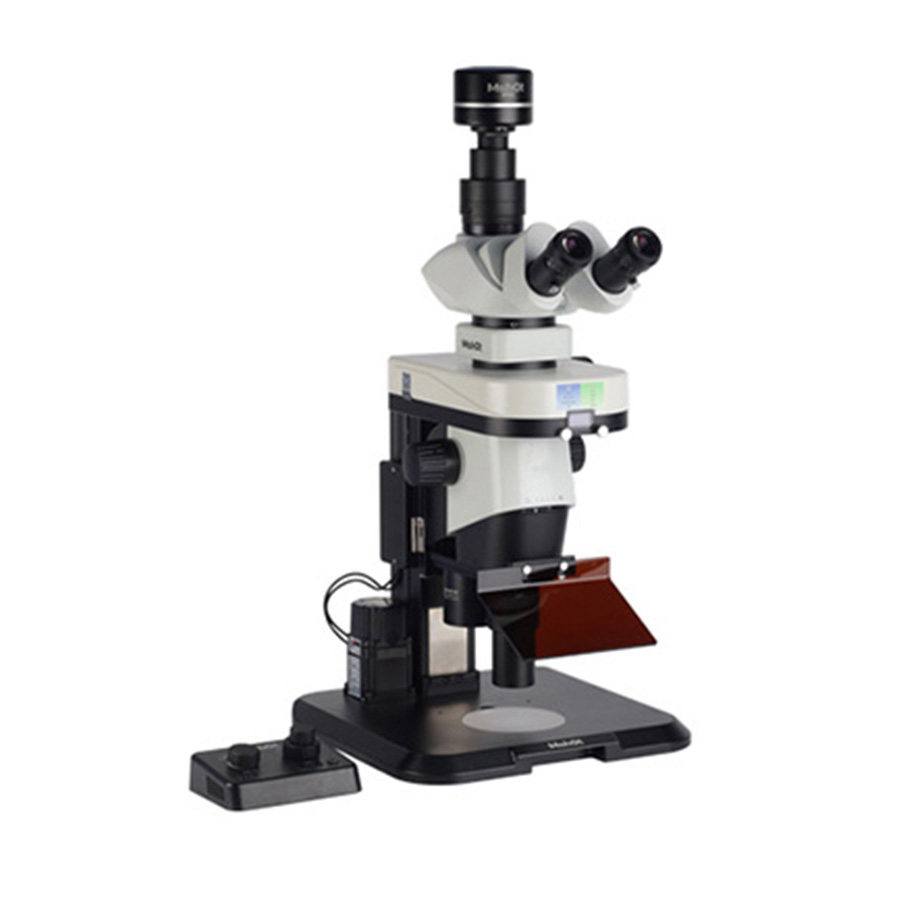

High power stereo fluorescence microscope MZX200

High power stereo fluorescence microscope MZX200

The high-power stereo fluorescence microscope MZX200 is a stereo fluorescence microscope with an ultra-large zoom range and electric focus. It can achieve a wide range of zoom from 6.3 to 630 times. It can realize the functions of a stereo microscope and a biological microscope in model organism research. .

Categories: , ,
Share:

Get Exclusive Offers and Updates!

    Description

    The high-power stereo fluorescence microscope MZX200 is a stereo fluorescence microscope with an ultra-large zoom range and electric focus. It can achieve a wide range of zoom from 6.3 to 630 times. It can realize the functions of a stereo microscope and a biological microscope in model organism research. , equipped with an LED digital display fluorescence module suitable for observation of fluorescent dyes such as GFP, and is especially suitable for research on model organisms such as nematodes.

    Feature

    Rotating objective lens design:

    The objective lens is designed to rotate to avoid interference. It has a built-in reflective lens switching device. There is no need to move the body and zoom body after switching the objective lens, and it can also ensure that the center position of the field of view remains unchanged. It comes standard with dual objective lenses.

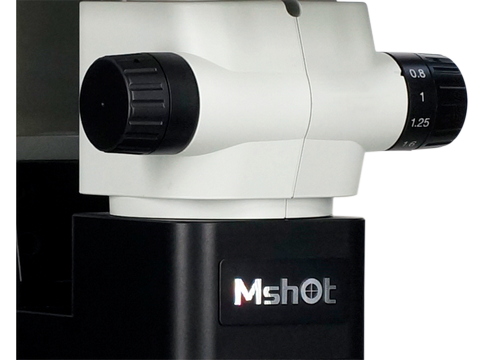

    Large zoom ratio:

    Zoom body and magnification: 0.8x-5.6x zoom body, 1-7 zoom ratio. When using a 1x objective lens, the true optical magnification is: 6.3X-63X; when using a 10x objective lens, the true optical magnification is: 63X -630X.

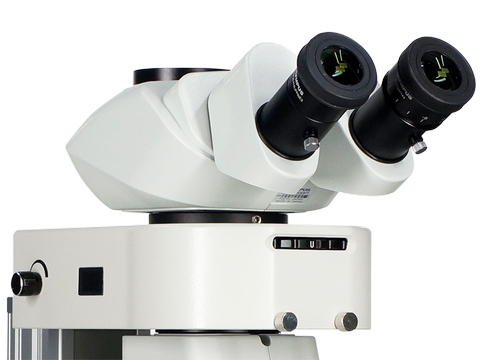

    epi-fluorescence attachment:

    Three-channel six-hole internal positioning converter, digital display LED screen, real-time display of the current fluorescence channel and brightness percentage.

    Sample images:

    Installation video:

    Specifications

    Items Specification Quantity
    Zoom Body SZX2-ZB10, Zoom Ratio: 10:1 (Zoom Range: 0.63x to 6.3x), with aperture diaphragm 1
    Eyepiece Tube Variable angle trinocular head, rear-mounted interface version 1
    Eyepiece Wide-field eyepiece SWF10X/22mm 2
    Objective Lens DFPLAPO1x-4 flat-field apochromatic objective lens, working distance: 81mm
    DFPL2x-4 flat-field semi-apochromatic objective lens, working distance: 33.5mm    		 1
    1
    Stereo Fluorescence Accessory Excitation Block Excitation light wavelength band –
    MZX-VBG-2 395/25nm, 425nm, 460/50nm (U) 1
    485/25nm, 505nm, 525/30nm (B)
    530/40nm, 565nm, 605/55nm (G)
    Focusing Base Focusing base, with black anti-glare sliding plate (including objective lens switching device, zoom body fixing part, anti-glare plate, light homogenizing plate, glass plate) 1
    Camera adapter TV1XC-MO 1
