Multi-channels epi-illuminating fluorescence microscope

Entry-level upright fluorescence microscope MF31

MF31 upright fluorescence microscope adopts infinity plan achromatic objective lens and wide field eyepiece, which can be used for binocular or trinocular observation. It is equipped with LED fluorescence excitation device to realize bright field and fluorescence microscopic observation, and can be used in clinical laboratories to utilize the principle of microscopic magnification. For observing tiny cells, tissues and other samples.

Categories: , ,
Share:

Get Exclusive Offers and Updates!

    Description

    MF31 series fluorescence microscope adopting excellent quality infinity optical system combined with LED fluorescence illuminator. The LED fluorescence system is modular design, does not need external power box, it can offer blue, green and UV fluorescence excitation groups. Digital screen shows and remember each fluorescence channel light intensity. The microscope is good for entry level fluorescence observation such as immunofluorescence and bio-fluorescence, and bright field of biological slide. It is easy to operate, environment protect and high safety, widely used at school, university lab, medical center and science research institute. Users can chose different models based on fluorescence channels.





    Feature

    Excellent accessory compatibility:

    ■Compatible with various accessories that use the UIS2 standard, such as UIS2 objectives and microscope imaging interfaces.
    ■More expansion can be achieved by selecting corresponding accessories. For example, using the 1.2X T2 interface, it can be adapted to an APS-C format SLR or Microscope. Image on a single screen without the problem of black edges.

    LED fluorescent module:

    ■Using MSHOT LED fluorescence module, single-color fluorescence or three-color fluorescence excitation can be selected. In addition to the common BGU three-color fluorescence configuration, there are also Y, R, BG dual-pass and other channel configurations.
    ■Meet the needs of cell slide observation, respiratory virus detection, tuberculosis Detection, dermatophyte detection and other common fluoroscopy needs.
    ■The LED digital display fluorescent module can be turned on and off immediately after use. The brightness is adjustable by 1% and the brightness of each channel is independently memorized.
    ■The digital display screen can clearly display the current channel and brightness settings for easy quantification.

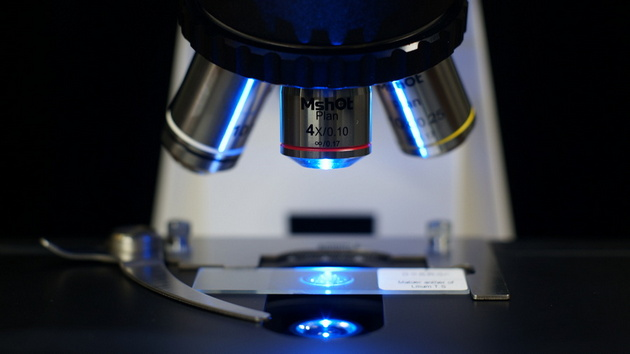

    Highly transparent plan achromatic objectives:

    Through the special optical design, the imaging within the entire field of view maintains high clarity and flatness. This overcomes the problem of blurry imaging at the edges of the field of view of traditional achromatic objectives and improves observation comfort and accuracy.

    Sample images:

    Specifications

    Parts Specification Standard Optional
    Eyepiece WF10X/FN22mm •
    Observation tube Trinocular tube, 30°inclined •
    Nosepiece Quadruple nosepiece,ball bearing with anti fungus device •
    Quintuple nosepiece,ball bearing with anti fungus device   •
    Objective Infinity Plan Achromatic Objective 4X/10X/40X/100X •
    Fluorescence system Filter cube Filters
    B EX:460‒490nm •
    G EX:510-550nm   •
    UV EX:330-380nm   •
    BU EX: U:330-380nm；B:460‒490nm   •
    BGU EX: U：330-380nm；B：460‒490nm；G :510-550nm   •
    Focus system Fine and coarse adjustment with tension and limited stopper, 2μm scale, coarse stroke per rotation 40mm, fine stroke per rotation 2μm, focusing vertical movement 24mm •
    Stage Double layer mechanical movable stage, size 210x140mm, travel motion76x50mm •
    Transmitted illumination system White LED lamp with brightness adjustable •
    Abbe condenser NA1.25 •
    Camera adapter 1X C-mount •
    0.5X C-mount   •
    Accessories Allen driver •
    Dust cover •



    Resources

    Icon

    Fluorescence microscope MF31 brochure

    1 file(s) 601.76 KB
    Download

    Icon

    Fluorescence microscope MF31 user manual

    1 file(s) 841.80 KB
    Download
