Broad-spectrum LED illuminator

MG series broad-spectrum LED illumination is a high power LED light source for fluorescence microscope, it is used to instead of traditional mercury light source. Get together 9 pieces and 16 pieces LED bulbs in one unit to achieve multiple wavelength lighting. The light source is less give out heating, longer working life and not much maintenance needed, which is satisfied for higher requirement microscope users especially scientific research. It is workable for Olympus, Nikon, Leica, Zeiss, Mshot brands and accept customize for other brands microscope.

Description

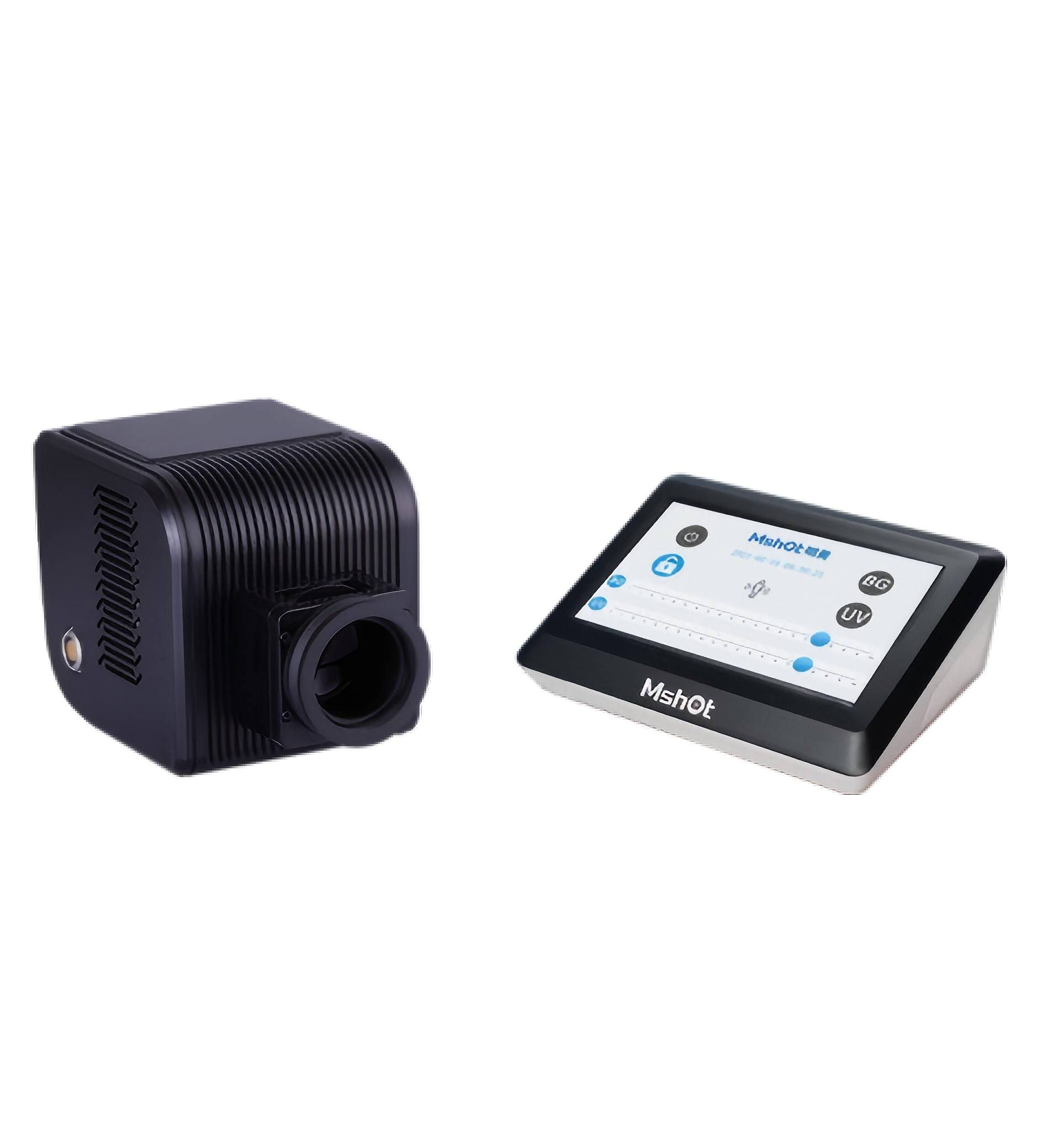

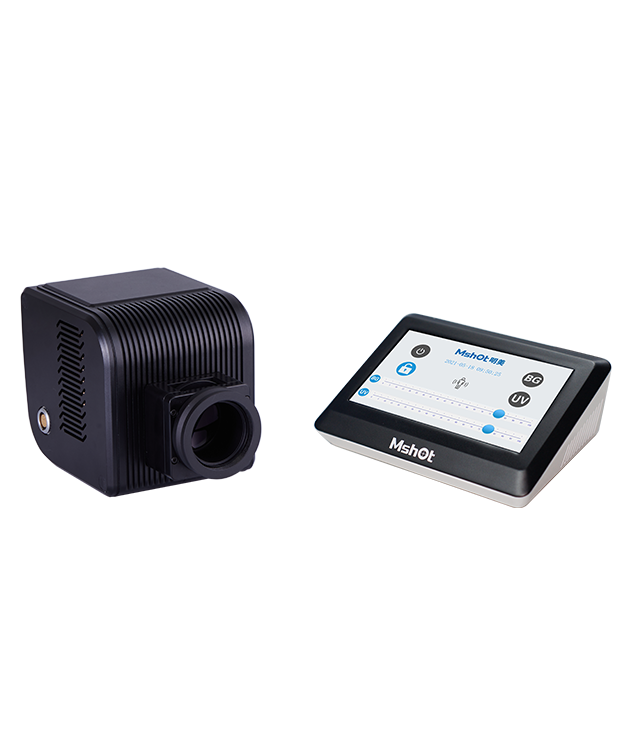

The broad-spectrum high-power LED fluorescence illuminator MG-100 is a new generation of fluorescence microscope light source that replaces the mercury lamp. Based on innovative LED technology, it can achieve wide-spectrum excitation covering the UV to visible light spectrum. The touch screen controller is easy to use, can be turned on and used immediately, and the brightness can be freely adjusted. The service life can reach 50,000 hours.

Feature

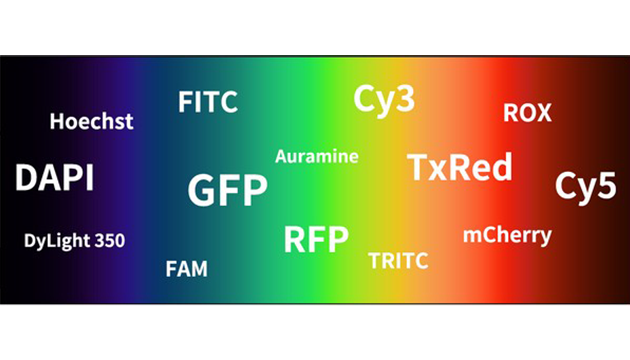

Broad spectrum excitation:

The continuous output spectrum covers the 350-390nm ultraviolet band and the 410-760nm visible light band, which can meet the excitation requirements of common fluorescent dyes.

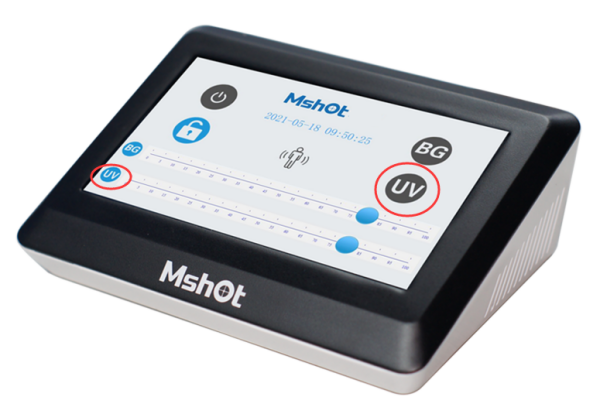

UV band separate control:

The ultraviolet band and visible light band adopt two-way control, and the ultraviolet light can be turned off separately, which has lower phototoxicity to living cells. It can also be safely used as a bright field light source and fluorescent light source in material science metallographic microscopes.

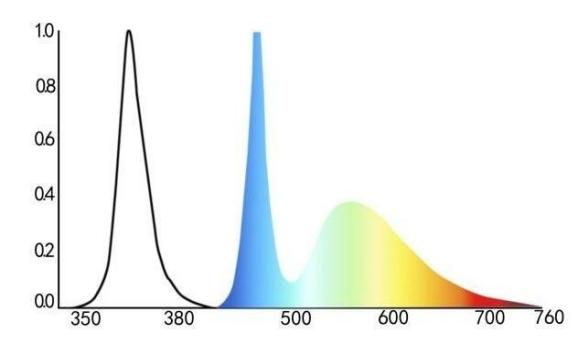

Benefits compared to mercury light source:

LED fluorescent light sources have obvious advantages over traditional mercury lamps. They do not require preheating, can be turned on and used immediately, and can be turned off at any time. The brightness can be controlled with an accuracy of 1%, and the brightness is stable and uniform. The lifespan can be up to 50,000 hours, saving maintenance costs.

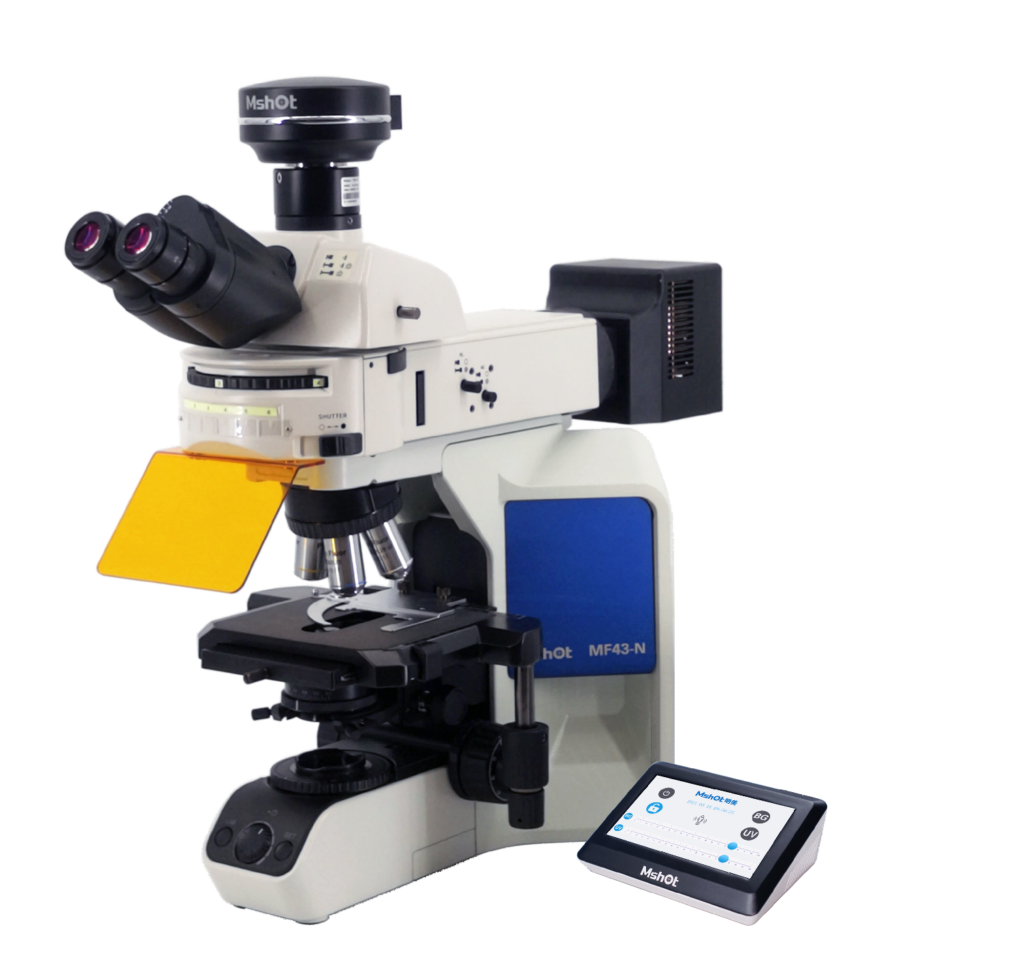

Matching world famours brands fluorescence microscopes:

It can be matched with fluorescence microscopes of four major brands including Olympus BX43, Nikon 80i, Leica DM2500, Zeiss Observer D1 and Chinese mainstream brands, with optional fiber optic output configuration to meet the needs of different users in scientific research, analysis and inspection.

Sample images:

Specifications

Item	MG-100
Light source host	Broad-spectrum cover excitation wavelength from 350nm~750nm, output intensity is adjustable
UV lighting	Yes, separately control UV lighting
BG lighting	Yes
White lighting	Yes
Light source control box	100W
Power line	1.5 meter, 8P aviation head (With temperature control, protect the light source)
Power control box	Touch screen show light intensity
Control mode	Two independent controllers, Dimming range: 0-100%, Dimming accuracy:1%
Brightness memory	Two channels
Heat dissipation mode	Forced air cooling
Size	Light source：L180mm x W 114mm x H122mm
Size	Control box：L 196mm x W 137mm x H 65.5mm
