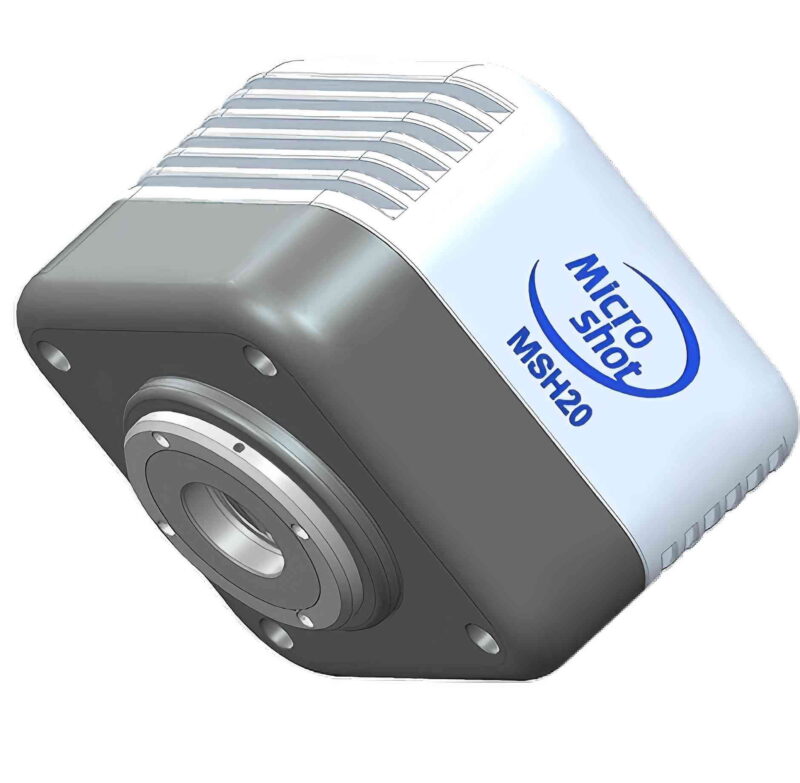

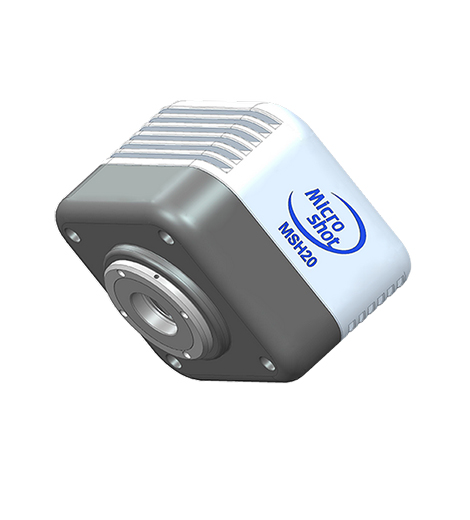

Back-illuminated Mono Cooling Camera MSH20

MSH20 is a monochrome camera in super sensitivity, it has 95% QE quantum efficiency to get faster speed and excellent noise radio, spectral response is from 200nm to 1300n, optional with cooling, all the features make the camera is superior on microscope imaging, and outstanding when applied to life science, spectral analysis, astronomical observation and other advanced technology research area.

Category:
Share:

Get Exclusive Offers and Updates!

    Description

    MSH20 is a highly sensitive black-and-white camera with important advancements. It not only has an ultra-high quantum efficiency of 95% QE, faster output frame rate and excellent signal-to-noise ratio, but also has a 2″ large target surface and a wide spectrum of 200-1300nm. The response is beneficial to improving sensitivity and dynamic range. The superior imaging effect makes MSH20 amazingly performant in cutting-edge scientific research fields such as life sciences, spectral analysis, and astronomical observations.

    Feature

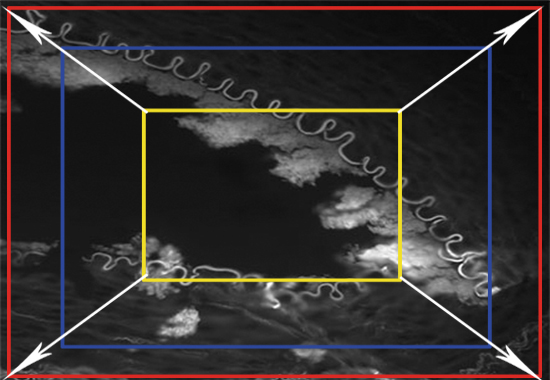

    2 inch super scale sensor offers super view:

    The 2 inch large area array has larger photosensitive area and better imaging property, which brings a larger field of vision for the observer and provides a more direct full field observation effect.

    BSuper QE monochrome camera & Wider spectral reponse:

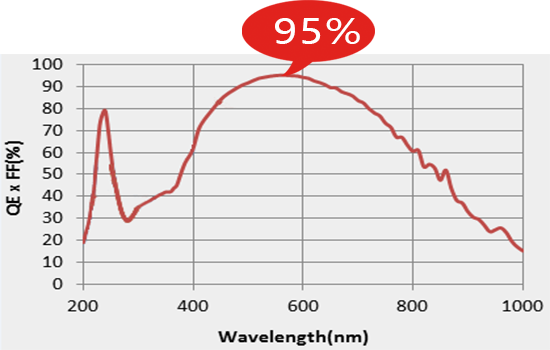

    Monochrome camera has higer quantum efficiency (EQ) and popular to fluorescence microscopy imaging. QE is the probability of photons converted into photoelectrons at a certain wavelength, which is related to the wavelength. The quantum efficiency of MSH20 has reached 95% at the wavelength of 560nm, super wide spectral reponse cover 200nm~1100nm.

    Sample images:

    Specifications

    Item MSH20
    Type Monochrome
    Effective megapixels 4.2 megapixels
    Sensor size 2inch
    Pixel size 11 um × 11 um
    Resolution and frame rate 2048 × 2048 24fps
    Any size of ROI
    Exposure time 0.021ms ~ 20s
    Dynamic range >93dB
    Full well capacity 93Ke-
    Read out noise 1.47e-
    Spectral wavelength 200nm ~ 1300nm
    Shutter type Electronic rolling Shutter
    Cooling mode (optional) Semiconductor cooling mode/ Not cooling
    Exposure function Manual exposure / Auto exposure / Zone exposure
    Image format TIF, BMP,JPG,RAW
    Software data DirectShow / TWAIN
    Operating system Windows XP 32Bit, Windows 7/8/10 32/64Bit
    Data port USB3.0 B type port,5Gbps
    Camera port Standard C mount
    Power supply USB 5V electrical supply
    Working temperature Working temperature:0~50℃;Working humidity:10%~85%RH
    Size 100 x 100 x 75 mm
