The back-illuminated scientific-grade sCMOS camera MSH12 achieves a perfect balance of high resolution and high sensitivity, maximizing signal detection. In addition, it combines the capabilities of high speed and wide dynamic range, and can be widely used in materials and life sciences. , such as low-light imaging, fluorescence imaging, spectral imaging and other fields.

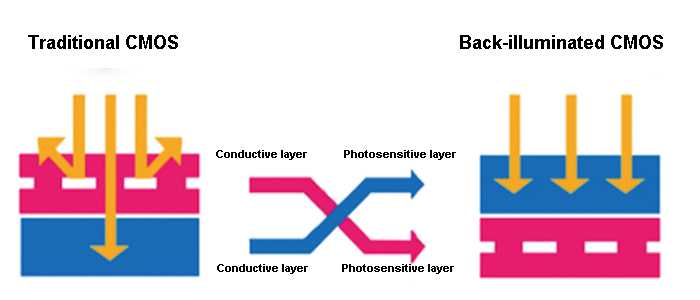

MSH12-BI is a high sensitivity camera with back lighting technology, it achieves the most possibility to detect signal, keep high frame rate and wide dynamic rang. Big size 1.2 inch sensor offers wider field of view and and better quality image. This camera is good to use for life science and material analysis, such as weak light imaging, fluorescence imaging, spectral imaging and so on.
| Item | MSH12-BI | |
| Type | Monochrome | |
| Effective megapixels | 4.2 megapixels | |
| Sensor size | 1.2inch | |
| Pixel size | 6.5 um × 6.5 um | |
| Resolution and frame rate | 2048 × 2048 | @74fps(11 bit)/@43fps(12bit) |
| 1024 x 1024 | @74fps(11 bit)/@43fps(12bit) | |
| Any size of ROI | ||
| Scanning mode | Progress scan/Continuous output | |
| Shutter type | Electronic rolling shutter | |
| Exposure time | 12μs ～ 2600s | |
| Effective gain | 1～16X | |

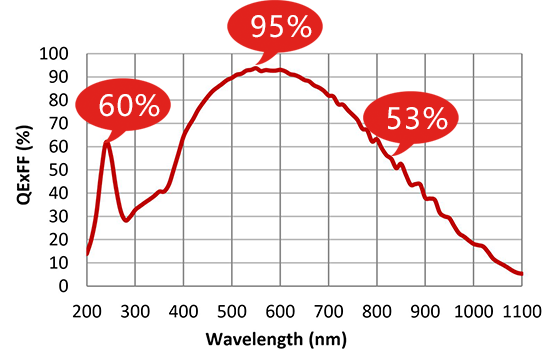

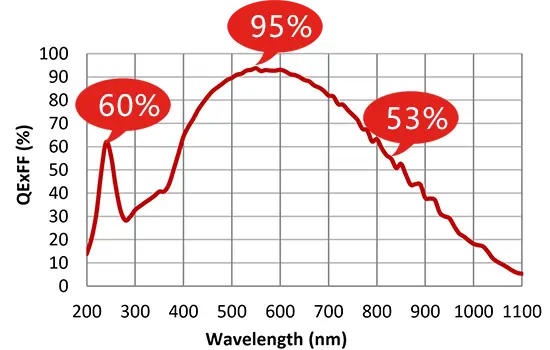

| Exposure response | 200nm ～ 1100nm | |
| A/D converter | 16Bit | |
| Cooling mode | Peltier cooling mode, lower than room temperature 40°C | |
| Exposure function | Manual exposure / Auto exposure / Zone exposure | |
| Image format | TIF, BMP,JPG,RAW | |
| Image cache | 128MB | |
| Trigger mode | Software trigger | |
| Software data | DirectShow / TWAIN | |
| Operating system | Windows XP 32Bit, Windows 7/8/10 32/64Bit | |
| Data port | USB3.0 B type port，5Gbps | |
| Camera port | Standard C mount | |
| Power supply | USB 5V electrical supply | |
| Working temperature | Working temperature：0～40℃；Working humidity：10%～85%RH | |
| Size | 100 x 100 x 75 mm | |
