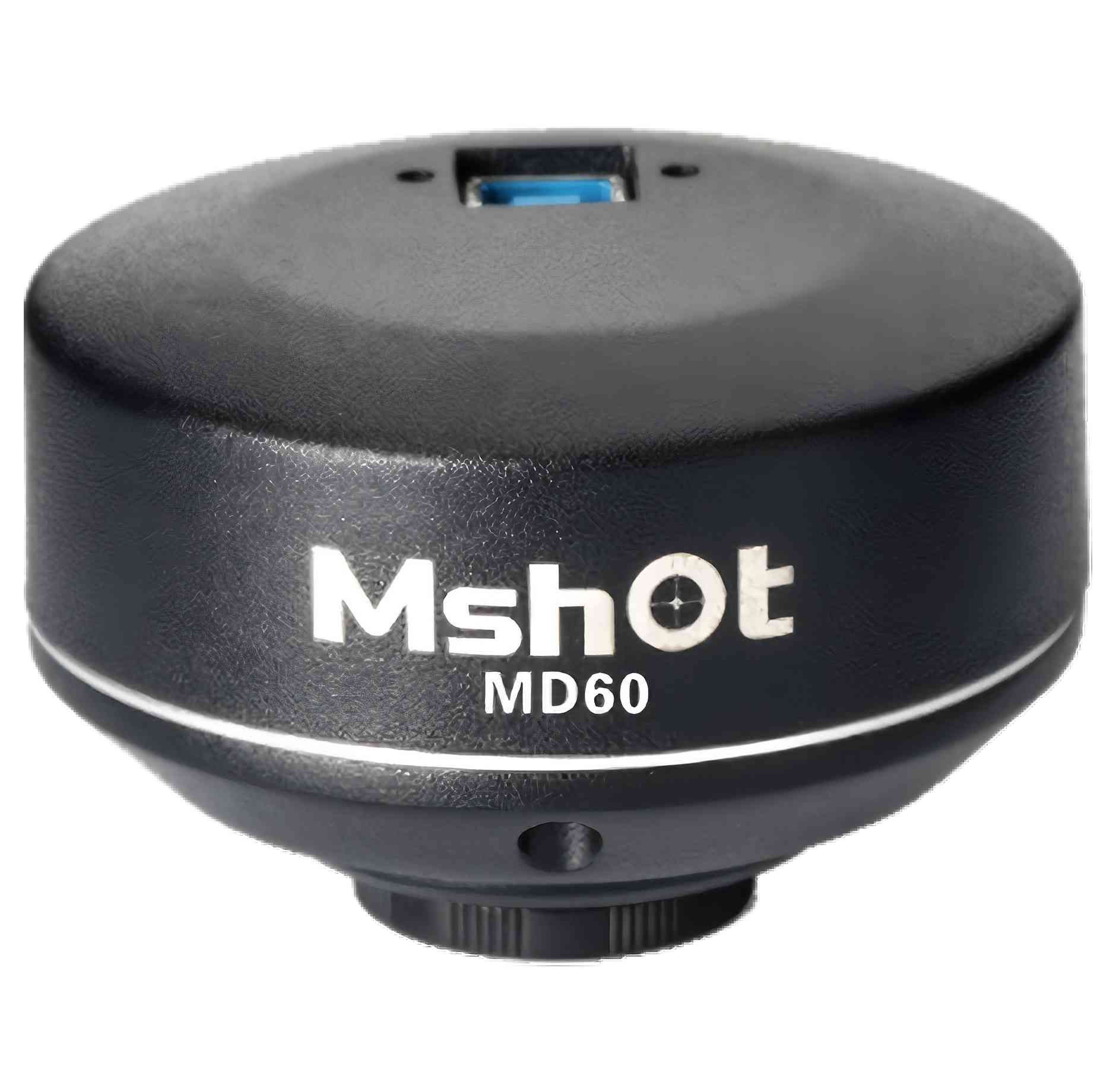

6.3MP Microscope camera MD60

6.3MP Microscope camera MD60

USB3.0 microscope camera MD60 adopts a 6.3 million high-definition pixel high-performance imaging chip, which can be matched with biological microscopes, metallographic microscopes, stereo microscopes, etc., and can be used in pathological diagnosis, metallographic analysis, and stereoscopic observation.

Category:
Share:

Get Exclusive Offers and Updates!

    Description

    MD60 is one of the most popular microscope camera designed by Mshot, 6.3 megapixels is favourable to all routine microscope applications. The camera adopts high quality 1/1.8″ ISP image processing sensor and USB3.0 interface, features with high frame rate, good color rendition and high sensitivity. Excellent image definition and color performance makes it an ideal camera used with microscope in the line of pathological diagnosis, polarized observation, metallurgical analysis, stereo observation, phase contrast, basic fluorescence and dark field.

    Feature

    Optimized for pathology imaging:

    6.3 MP high-definition pixels, advanced color restoration algorithms and sophisticated detail processing technology are deeply optimized for pathological diagnosis applications.

    High frame rate and high work efficiency:

    64Mb image cache and USB3.0 interface achieve high frame rate and high sensitivity. With smooth operation and fast data transmission, it is easy to obtain the same image effect as under the microscope, reduce the time spent on shooting, and greatly improve work efficiency. Every detail of the sample can be clearly seen, including bright field and fluorescence, to achieve a more comprehensive application.

    High sensitivity:

    The larger pixel size ensures higher sensitivity and can be used in fluorescence imaging shooting to easily obtain low-noise fluorescence imaging and fully demonstrate the observation effect of fluorescence images.

    Sample images:

    Specifications

    Item MD60
    Effective pixels 6.3 megapixels
    resolution 3072*2048
    Sensor size 1/1.8 inches
    Pixel size 2.4 um*2.4 um
    Frame rate 71FPS：3072×2048
    89FPS:1536×1024(BIN2)
    166FPS:1920×1080(ROI)
    178FPS:1280×720(720P)
    Any size ROI
    Exposure time 6us ～ 7s
    Effective gain 1～16X
    Spectral response 380nm ～ 650nm
    Scanning mode Progress scan / continuous output
     Trigger mode   Soft trigger
    Shutter Electronic rolling shutter
    A / D conversion 12Bit
    Exposure Manual/Auto/Area exposure
    White balance Manual/One push/Area
    Image format TIF,BMP,JPG,RAW
    Image Cache 128MB
    Soft ware Interface DirectShow / TWAIN
    Operating system Windows XP 32Bit, Windows 7/8/10 32/64Bit
    Data interface USB3.0 5Gbps B type interface
    Power supply USB 5Vpower supply
    Operating environment Temp：0～50℃；humidity：10%～90%RH（No condensation）
