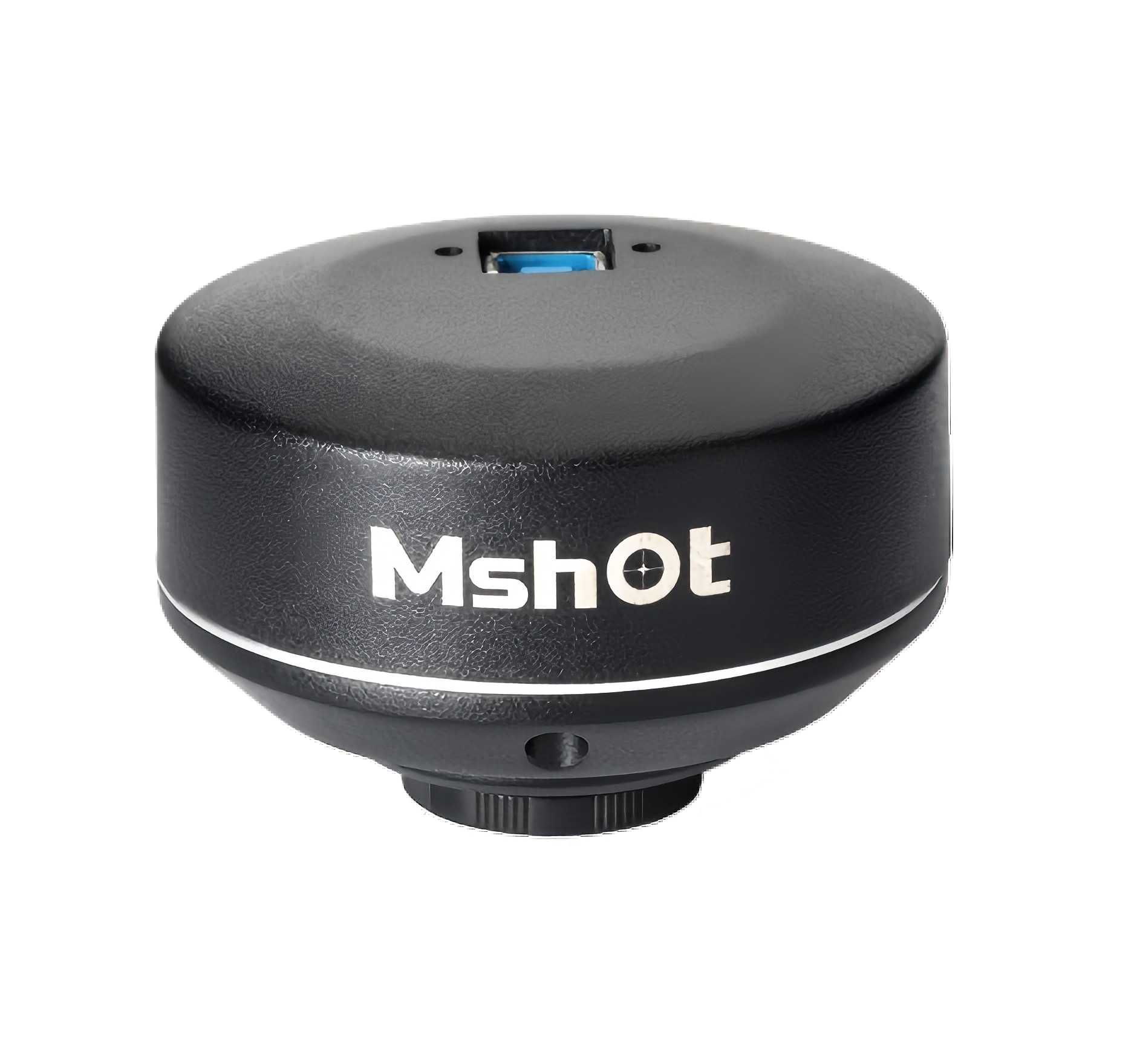

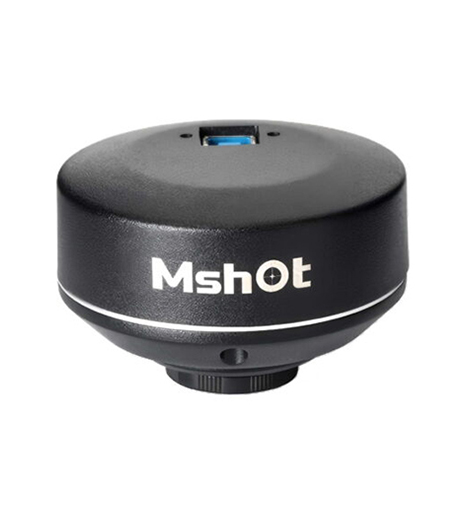

MD50-T is a CMOS Camera with USB3.0 digital adapter. It is the first released USB3.0 digital camera for microscopy imaging of MSHOT. The technology highly improved performance of microscope camera. MD50-T is a good choice for entry level microscope users who prefer high speed and good resolution.
MD50-T is a CMOS Camera with USB3.0 digital adapter. It is the first released USB3.0 digital camera for microscopy imaging of MSHOT. The camera adopts the USB 3.0 technology, which is highly expected in the microscopy imaging field. The technology highly improved performance of microscope camera. MD50-T is a good choice for entry level microscope users who prefer high speed and good resolution.
| Item | Specifications | |
| Model | MD50-T-4 | |
| Effective pixel | 5.0MP | |
| Sensor size | 1/2.5″ | |
| Pixel size | 2.2μm×2.2μm | |
| Resolution & frame rate | Resolution | Frame rate |
| 2592 × 1944 | 14FPS | |
| 1920×1080 | 31FPS | |
| 1024 × 760 | 63FPS | |
| 1280×960（SUM） 34 FPS | ||
| 1280×960（BIN） 34 FPS | ||
| 640×480（SUM） 86 FPS | ||
| 640×480（BIN） 86 FPS | ||
| Sensitivity | 1.76 V/Lux-sec | |
| Active size | 5.7mm(H) × 4.28mm(V) | |
| Scanning mode | Progress scan / continuous output | |
| Shutter | Electronic shutter | |
| Exposure time | 109μs‒3000ms | |
| Spectral response | 380 ‒ 650nm | |
| A / D conversion | 8 Bit/12Bit | |
| Trigger mode | Soft trigger | |
| Exposure | Manual/Auto/Area exposure | |
| White balance | Manual/One push/Area | |
| Image format | TIF、BMP、JPG、RAW | |
| Software Interface | DirectShow / TWAIN | |
| Software | support SDK | |
| OS | Windows XP 32Bit；Windows 7/8/10 32/64Bit | |
| Data interface | USB3.0 5Gbps | |
| Optical adapter | Standard C-mount | |
| Power supply | USB 5V | |
| Operating environment | Temp：0～40℃；humidity：10%～90%RH（No condensation） | |
| Size | Ø76×48.27mm | |
