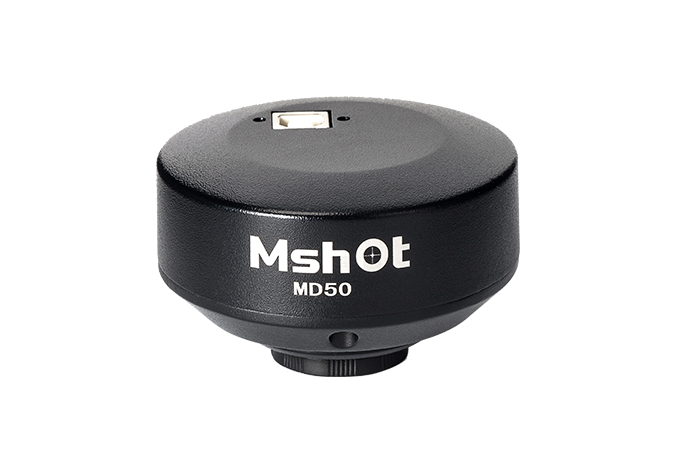

The microscope camera MD50 can be connected to any standard trinocular biological microscope, stereo microscope, and metallographic microscope to capture digital microscopic images. It has the advantages of fast transmission speed, good color restoration, clear images, and convenient storage. It is widely used in industrial quality control, teaching and research, material analysis, clinical inspection, machine vision and other fields.
MD50 is a entry level microscope camera in USB2.0. With optimized white balance, more accuracy color reproduction and 32MB cache to store data, the camera is superior than traditional USB2.0 CMOS camera on speed and stability. It occupies less PC memory to achieve smooth working on low configuration PC, which is favorable to routine microscope applications. The camera work well with Directshow and TWAIN program, compatible SDK is affordable for secondary development.
| Item | MD50 |
| Resolution | 5.0MP |
| Sensor | 1/2.5 inch |
| Pixel size | 2.2μm×2.2μm |
| Resolution and frame rate | 2592×1944：7 FPS |
| 2048×1536（ROI）：10.4 FPS | |
| 1920×1080（ROI）：15.4FPS | |
| 1280×960（SUM）：17.2 FPS | |
| 1280×960（BIN）：17.2 FPS | |
| 640×480（SUM）：26.7 FPS | |
| 640×480（BIN）：26.7 FPS | |
| Any size of ROI | |
| Exposure time | 59us ～3s |
| Effective gain | 1X~8X |
| Spectral range | 380nm ～650nm |
| Exposure mode | Electronic rolling shutter |
| A / D convert | 8Bit |
| Exposure function | Manual/ Auto/ Area |
| White balance | Auto/ One push/ Area |
| Image format | TIF,BMP,JPG,RAW |
| Image cache | 32MB |
| Software data | DirectShow / TWAIN |
| Operation system | Windows XP;Windows 7/8/10 32/64Bit |
| Data port | USB2.0 B type，480Mb/s |
| Power supply | USB 5V power on，work1W，standby0.45W |
| Working distance | Working temperature：0～50℃, humidity：10%～90%RH（no condensation） |
