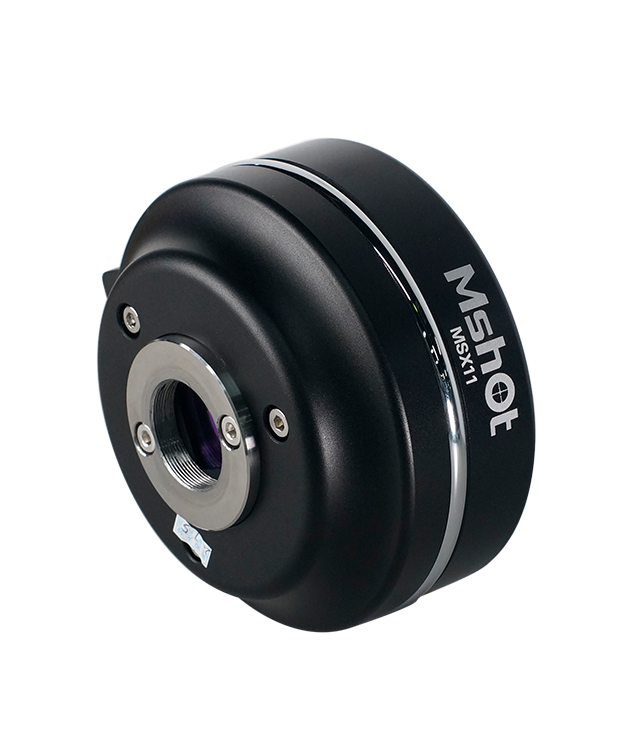

MSX11 is a 21 megapixels super high resolution camera with large size sensor bigger than 1 inch. It offers outstanding performance with balance of high resolution, wide field of view and good light sensitivity to weak light. The camera is favorable to applications of scientific grade covers imaging of bright field and fluorescence.And cooling functions is optional.

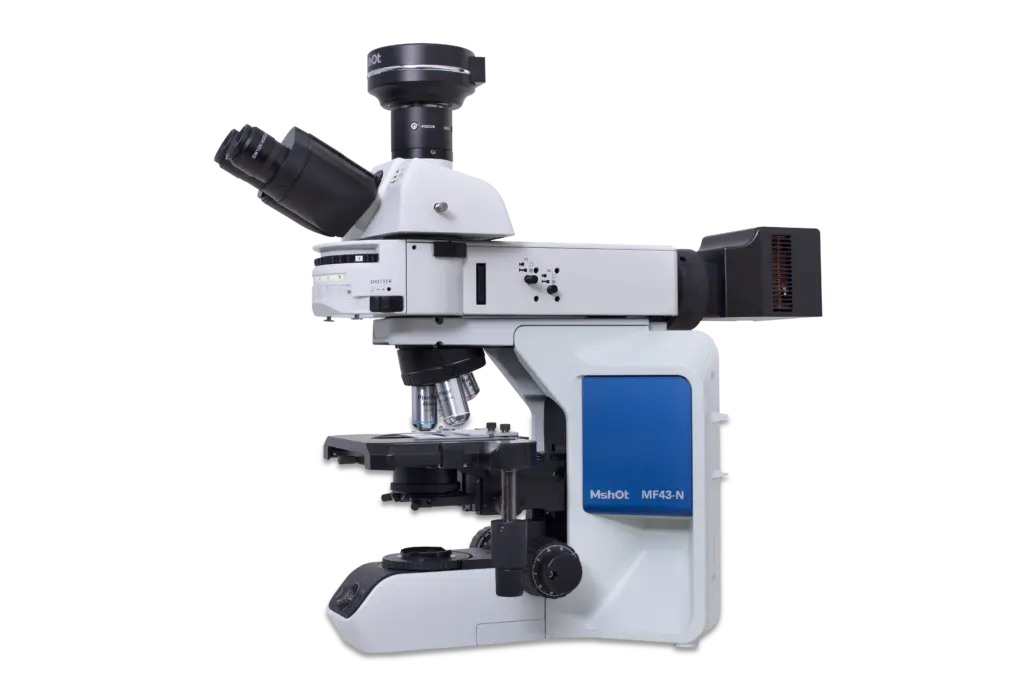

MSX11 uses a high-performance imaging chip and has the latest MS series hardware ISP image processing chip built in. It is specially optimized for microscope shooting scenes, accurately restores the fine structure and true color of the sample, and greatly improves the camera’s operating speed through hardware acceleration. It is an ideal tool for applications such as fluorescence photography, pathological diagnosis, metallographic analysis, and stereoscopic observation.
| Item | MSX11 | MSX11-C |
| Effective resolution | 21.0 Megapixels | |
| Resolution | 5280*3956 | |
| Sensor size | 4/3 inch | |
| Pixel size | 3.3 um*3.3 um | |
| Max. Frame rate | 21FPS@5280*3956 | |
| 21FPS@4096*3956 | ||
| 21FPS@3840*2160（UHD） | ||
| 21FPS@2640*1978（sum2） | ||
| 95FPS@2640*1730（skip） | ||
| Any size of ROI | ||
| Exposure time | 12us ～ 30s | |
| Effective gain | 1～16X | |
| Spectral response | 380nm ～ 650nm | |
| Working mode | Progressive / continuous | |
| Trigger | Software | |
| Exposure | Electronic rolling | |
| Cooling | No | Peltier cooling，below permissible ambient temeprature 15℃ |
| A / D convert | 12Bit | |
| Exposure function | Manual / Auto / Zone | |
| White balance | Auto / One push / Zone | |
| Image format | TIF, BMP, JPG, RAW | |
| Image cache | 128MB | |
| Software port | DirectShow / TWAIN | |
| Operating OS | Windows XP 32Bit, Windows 7/8/10 32/64Bit | |
| Data port | USB3.0 5Gbps B type | |
| Power supply | USB 5V | |
| Work surrounding | Temperature：0～40℃, humidity：10%～90%RH（no ） | |
| Shell size | 108.5mm*106.5mm*62.5mm | |
