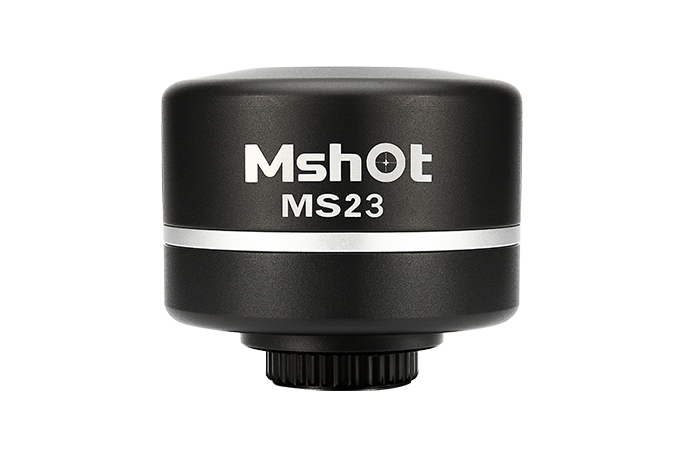

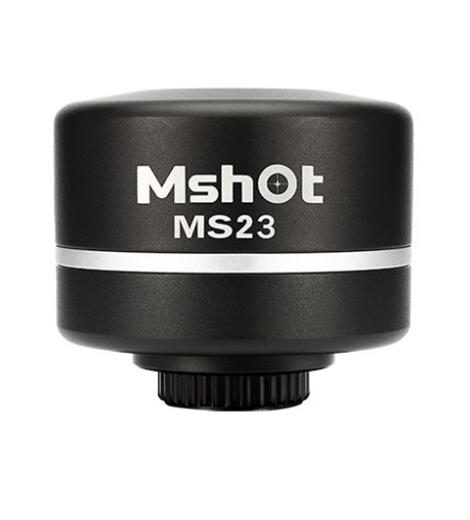

2.3MP Microscope camera MS23

MS23  is a scientific CMOS camera development by MSHOT. It adopts large area Sony sensor in high quality. Equipment with USB3.0 data port, it offers wide field view, high sensitivity, high dynamic range and high frame rate. Makes it quite suitable for weak fluorescence, no matter use with epi fluorescence microscope or inverted fluorescence microscope. Also fit to microscopy applications of pathology and phase contrast.

Category:
Share:

Get Exclusive Offers and Updates!

    Description

    The microscope camera MS23 adopts a large target surface and high-performance imaging chip, and cooperates with the USB3.0 data transmission interface. It has the performance characteristics of large field of view, high sensitivity, high dynamic range and high frame rate, and can be widely used in bright and dark fields, phase contrast, and polarization. , DIC and fluorescence imaging and other fields of microscopic imaging, it is an ideal tool for collecting high-quality microscopic pictures and performing microscopic image analysis.

    Feature

    Quantum efficiency up to 85%:

    The quantum efficiency of the microscope camera MS23 has been greatly improved compared to previous chips, reaching 85% at 500nm.

    Weak fluorescence imaging:

    With its high sensitivity and low noise, MS23 has unique advantages in imaging in low-light environments.

    Richer and more realistic image display:

    The high dynamic range of greater than 73dB can clearly show the details of bright and dark parts at the same time, restoring a richer and more realistic imaging effect. High-speed image preview: The average image preview speed at full resolution can reach 40fps, making the browsing effect smoother.

    Sample images:

    Specifications

    Item MS23


    Resolution & Frame rate

    1920X1200@ 40FPS
    Any size of ROI
    *SENSOR 1/1.2” color Sony sensor
    *Effective resolution 1920H×1200V (2.3MP)
    *Scanning mode Progress scan
    *Pixel size 5.86μm×5.86μm
    A/D convert 12bit
    *Spectral response 380-650nm
    Shutter type Global shutter
    *Exposure time 20μs‒42s
    Internal cache 64MB
    Trigger Software
    Acquire mode Continuous output
    *Exposure control Manual/ Auto/Area
    *White balance Manual/ One push/ Area
    Capture image mode BMP,JPG,PNG,TIF
    Controllable programs camera working speed, image size,capture mode,exposure time, gain, eliminate flash, GAMMA, contrast, RGB gain,saturation,black balance, sharpness
    *Support OS Windows XP(32bit); Windows 7/8/10 32/64bit;Linux
    *Software interface TWAIN,DirectShow
    *Data interface USB3.0 5GB/s
    Power Consumption USB5V power supply(no external power circuit)
    Working temperature 0~50℃
    Working humidity 10%-90%(no condensation)
    *Optical adapter C-mount
