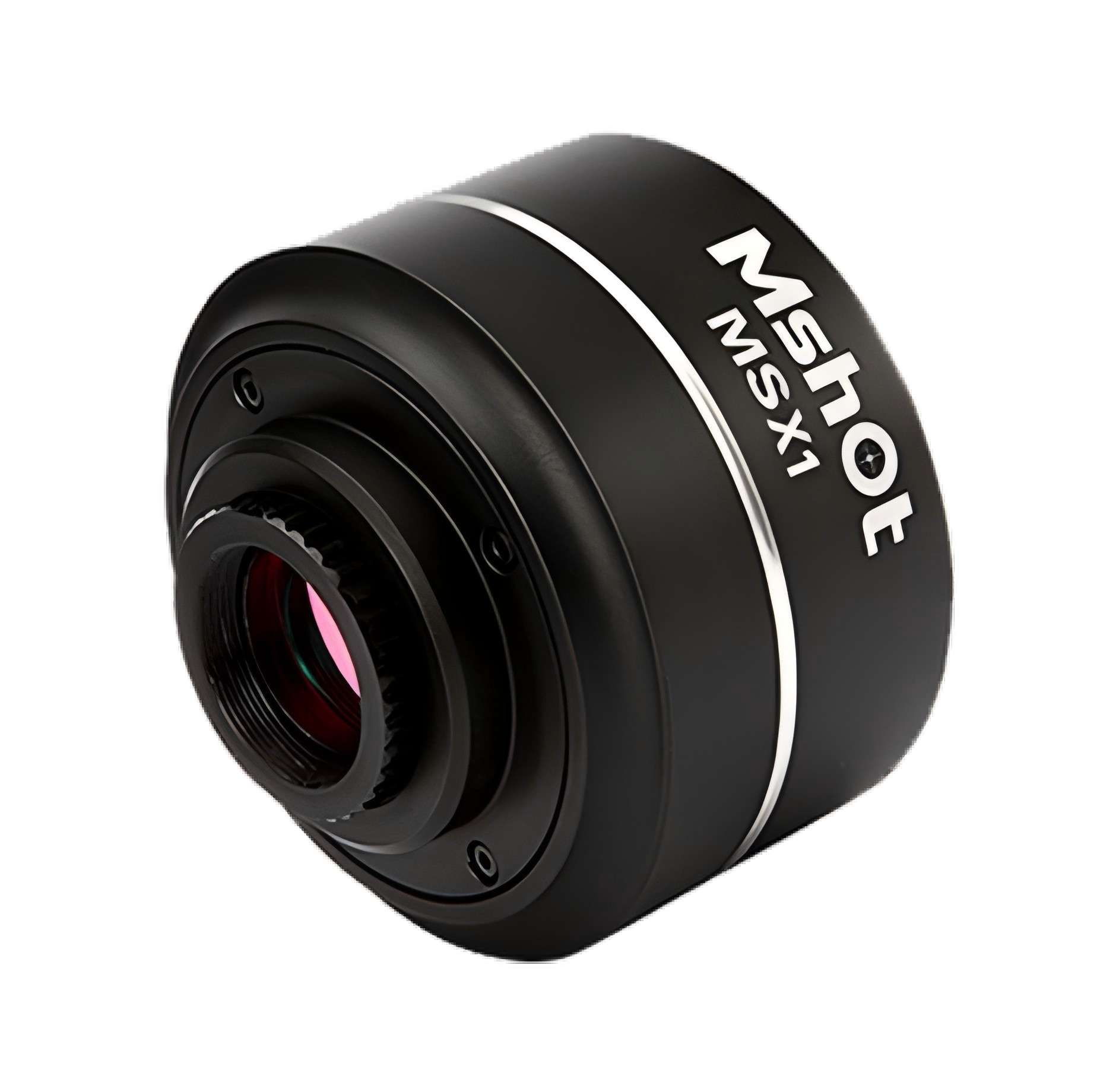

MSX1 adopts a high-performance imaging chip and built-in the latest MS series hardware ISP image processing chip. It is specially optimized for microscope shooting scenes and accurately restores the fine structure and true color of the sample. Through hardware acceleration, it greatly improves the camera running speed. It is an ideal choice for pathological diagnosis, Ideal tool for applications such as metallographic analysis and stereoscopic observation.
MSX1 is a super high resolution camera in 10 megapixels with high performance sensor, built-in Mshot new technology high performance ISP (Image Signal Processor) sensor, optimize microscope imaging capture ability and highly improved camera running speed, accurate reproduce observing target fine construction and true color, it is ideal for pathology diagnose, metallurgical analysis and stereo observation.
| Item | MSX1 |
| Effective resolution | 10 Megapixels (3816×2832) |
| Sensor size | 1/1.7 inch |
| Pixel size | 1.85μm × 1.85μm |
| Frame rate | 36fps |
| Scanning mode | Progressive / Continues |
| Shutter type | Electronic rolling shutter |
| Exposure time | 8μs ‒ 30s |
| Effective gain | 1x ‒ 16x |
| Spectral response | 380 ‒ 650nm |
| A/D Convention | 12bit |
| Image Cache | 64Mb |
| Trigger | Software trigger |
| Exposure | Manual / Auto/ Zone |
| White balance | Auto / One push / Zone |
| Image format | TIF,BMP,JPG,RAW |
| Software data | DirectShow / TWAIN |
| Operating OS | Windows XP 32bit,Windows 7/8/10 32/64bit |
| Data port | USB3.0 B type，5Gbps |
| Camera port | C-mount |
| Power supply | USB 5V input |
| Working surrounding | Working temperature 0 ‒ 40℃,working humidity：10% ‒ 90%RH |
| Size | φ76mm*62mm |
