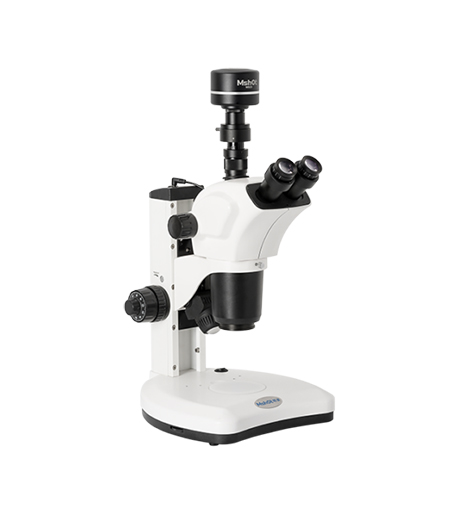

Stereo microscope MZ101

Stereo microscope MZ101 has the advantages of long working distance and large magnification range, which can meet the observation needs of different magnification rates

Categories: Microscopes, Stereo microscopes

Description

Stereo microscope MZ101 has the advantages of long working distance and large magnification range, which can meet the observation needs of different magnification rates. The stereo microscope is easy to operate in the process of use with the ergonomic design, so that the operator has a very comfortable operating experience. Lighting by white LED for both of transmitted and reflected observation.

Feature

Adjustable diopter, interpupillary distance linkage, smooth lifting and lowering:

The left and right diopters of the eyepiece are adjustable. The interpupillary distance adjustment adopts left and right linkage method, which makes observation comfortable and easy to operate. The lifting and lowering mirror body adjustment mechanism adopts coarse motion speed change, cylindrical roller guide, smooth transmission and light weight.

High-brightness LED, three lighting controls, adjustable brightness:

Using high-bright white LED lighting, you can choose transmission, reflection, or transflective lighting methods. It is controlled by independent electrical appliances and the brightness can be adjusted at will.

Long-distance zoom, optional auxiliary lens, multiple times of observation:

The continuous zoom objective lens has a long working distance and a large zoom range. An auxiliary objective lens can be selected as needed to meet the requirements for observation at different magnifications.

Sample images:

Specifications

Parts	Specification	Standard	Optional
Eyepiece	Wide field WF10X ,FN:22mm	•
	WF16X		•
	WF20X		•
	10X reticle eyepiece		•
Objectives	Continuous zoom	•
	Zoom range：0.7～6.3(Zoom radio：1:9)	•
	Working distance：110mm	•
	2X auxiliary objective lens		•
	0.5X auxiliary objective lens		•
Field of view	Φ33.8～Φ3.49	•
Total magnification	7X~63X	•
Effective moving range	220mm	•
Basement size	310mmX280mm	•
Illumination	Reflected：3W high brightness LED	•
Illumination	Transmitted：5W high brightness LED	•
Camera adapter	1X C-mount adapter	•
Camera adapter	0.5X C-mount adapter		•
MZ101 simple polarizing attachment			•
MZ101 black and white board			•
MZ101 translucent plate			•
MZ101 transparent glass plate			•
MZ101 frosted glass plate			•
